Types of Zircon Crusher

Zircon

Zircon is a natural mineral that is widely present in acidic igneous rocks, metamorphic rocks and other sediments. It is a common mineral in zirconium-containing minerals and can be directly used in refractory manufacturing, glass industry and ceramics. There are many types of equipment required for the processing of zircon, including crushing equipment, grinding equipment, mineral processing equipment and other auxiliary equipment. In this article, we mainly introduce zircon crushing equipment.

zircon

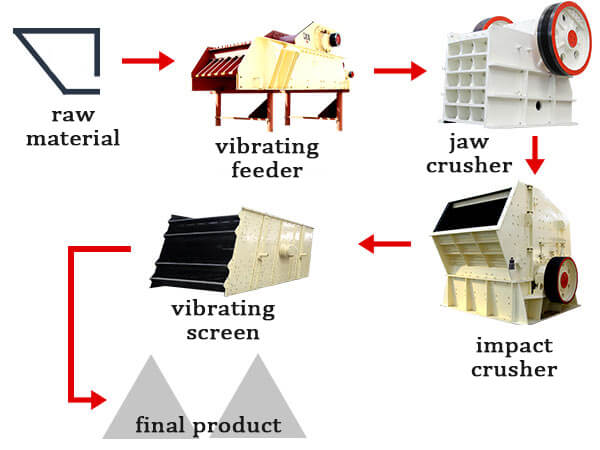

Zircon crushing process flow

zircon crushers

impact crusher for aggregate plant

impact crusher

The impact crusher is generally used for the secondary stone crushing, the output range is within 0-60mm, and the finished product has a good grain shape. It has a particularly good effect for low- and medium-hardness materials, with lower loss.

ModelSpecification
(mm)
Feed opening
(mm)
Max feeding size
(mm)
Capacity
(t/h)
Motor
(kW)
Pf-0607φ-644*740320*77010010-2030
Pf-0807φ-850*700400*73030015-3030—45
Pf-1008φ-1000*800400*83030030-5037–55
Pf-1010φ-1000*1050400*108035050-8055–75
Pf-1210φ-1250*1050400*108035070-120110-132
Pf-1212φ-1250*1250400*1300350100-150132-160
Pf-1214φ-1250*1400400*1430400130-180160*200
Pf-1315φ-1320*1500860*1520500160-250180-260
Pf-1320φ-1320*2000860*2030500300-350300*375

hammer crusher

ModelSpeedFeed size
(mm)
Out-put size
(mm)
Capacity
(t/h)
Weight
(T)
Power
(kw)
PC-400×3001450≤400-101-30.811
PC-600×4001000≤2200-155-251.522
PC-800×600980≤3500-1510-503.155
PC-800×800980≤3500-1510-603.575
PC-1000×8001000≤4000-1320-757.9115

select for you

The mobile sand making machine is composed of crushing, screening, conveying, and power control system, and can be divided into a tire-type mobile sand making machine and a crawler-type mobile sand making machine.
It is very suitable for unfixed production sites or small working space, flexible transition and convenient operation, which can save a lot of transportation costs.
