Vibrating screen is the most popular screening equipment widely used in the crushing and screening plant. It does circular trajectory, so also known as the circular vibratory screen.
rectangular single-, double-, and multi-layer, high-efficiency new screening equipment.
Screen Layer1-4 layer.
Applications
mining, quarrying and so on industries to screen ore, sand, gravel effectively.

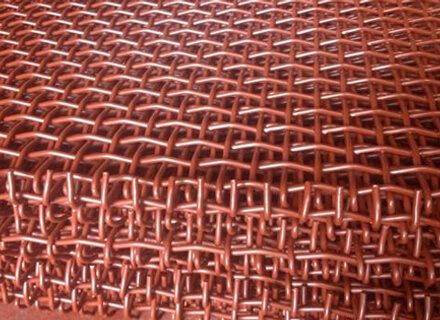

Screen materials
steel, ethoxyline resin.

Eastman vibrating screen

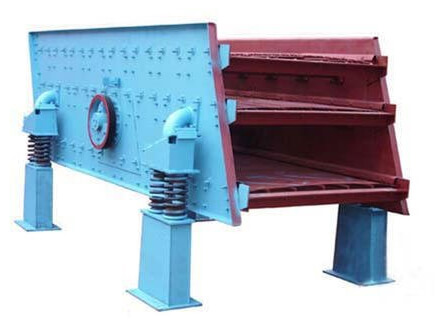

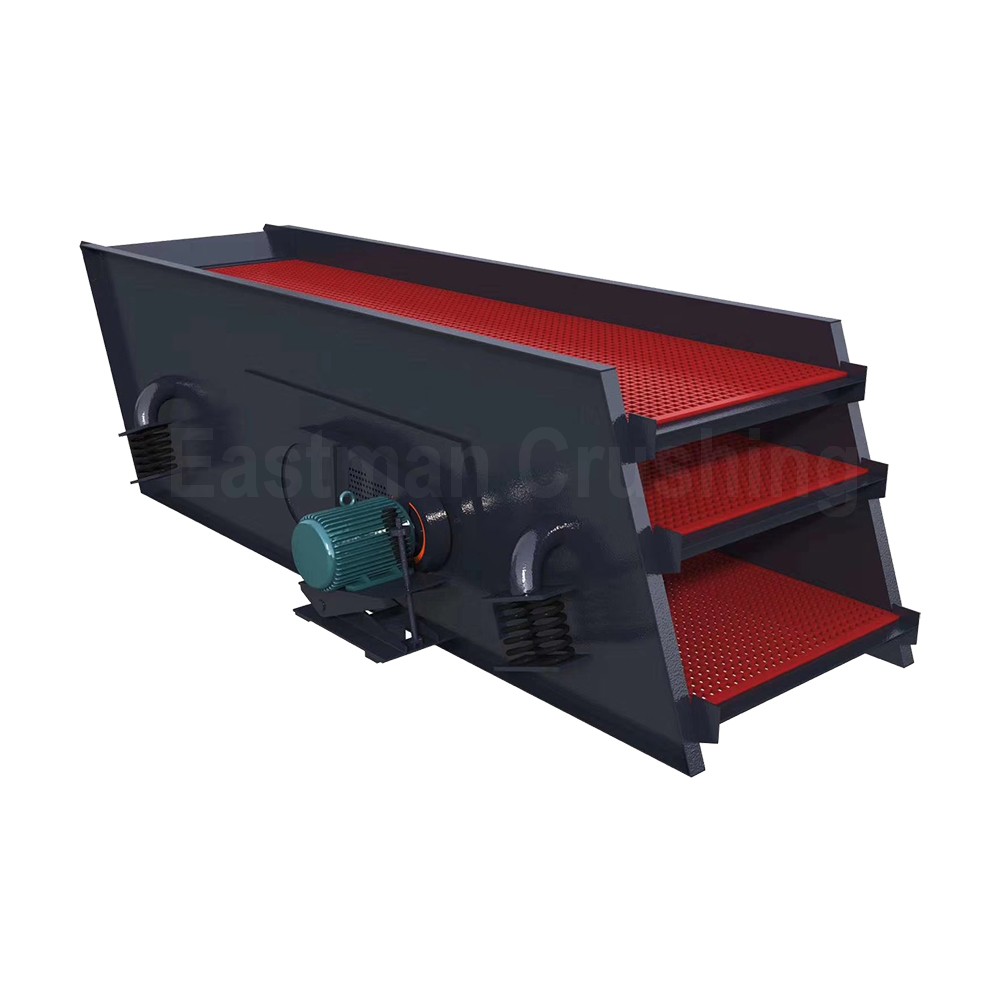

multi layer vibrating screen

Multi-layer screen

Customizable, most came in single, dual, three layers.

vibrating screen materials

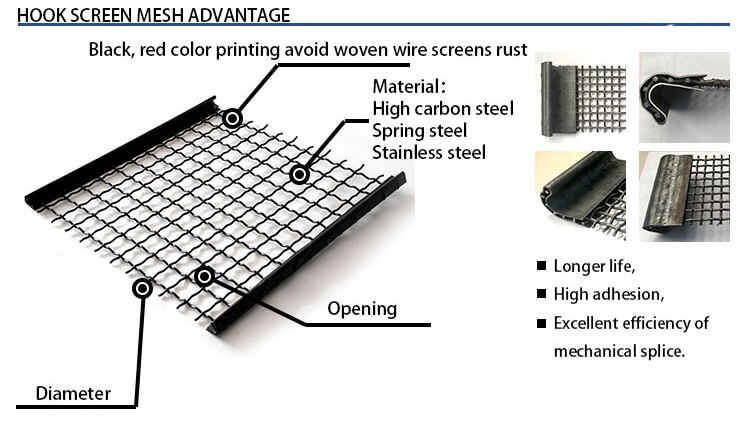

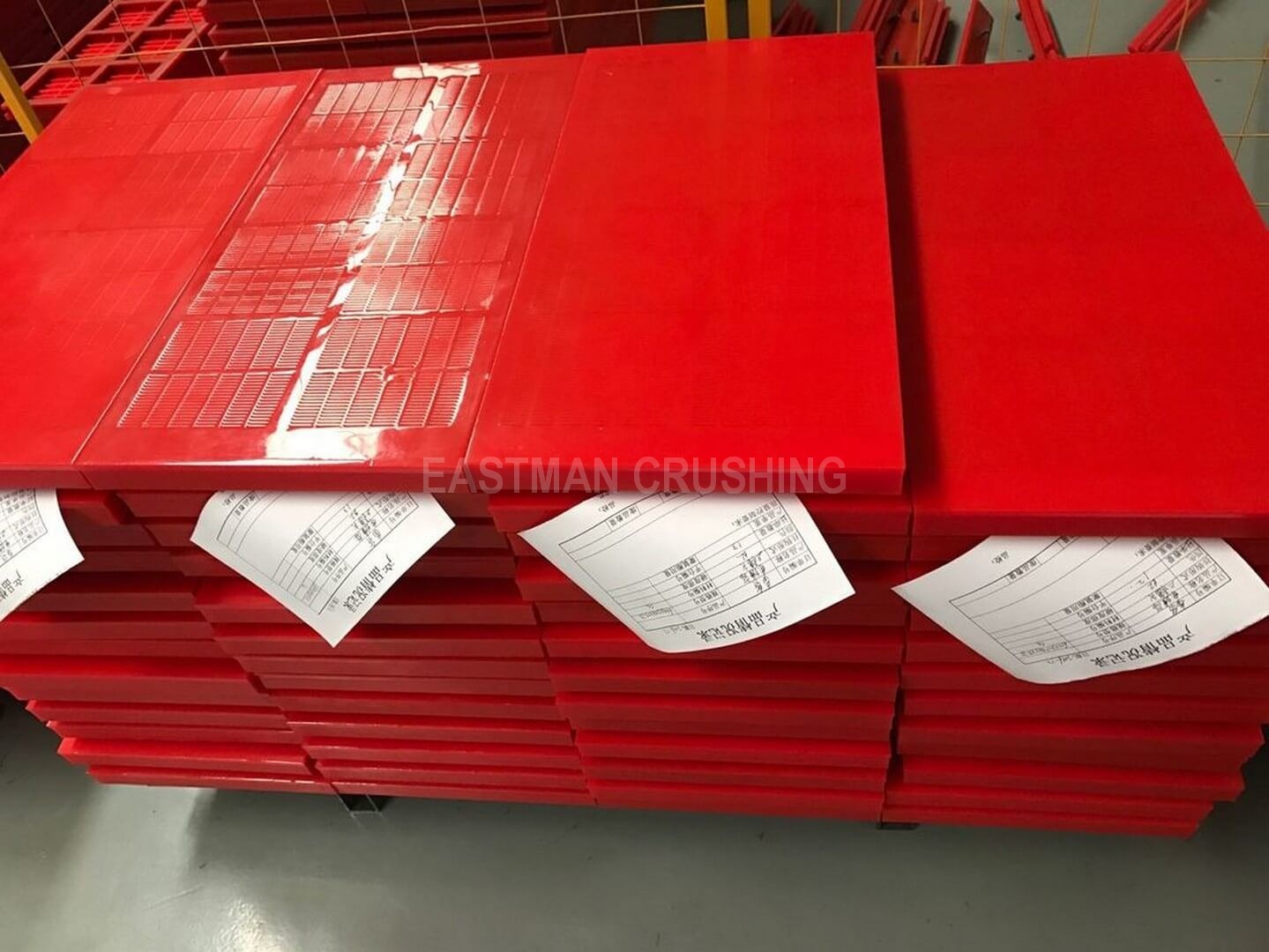

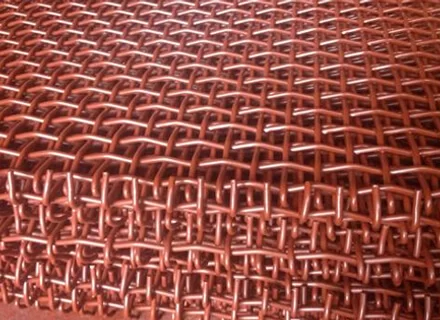

Screen material + mesh size

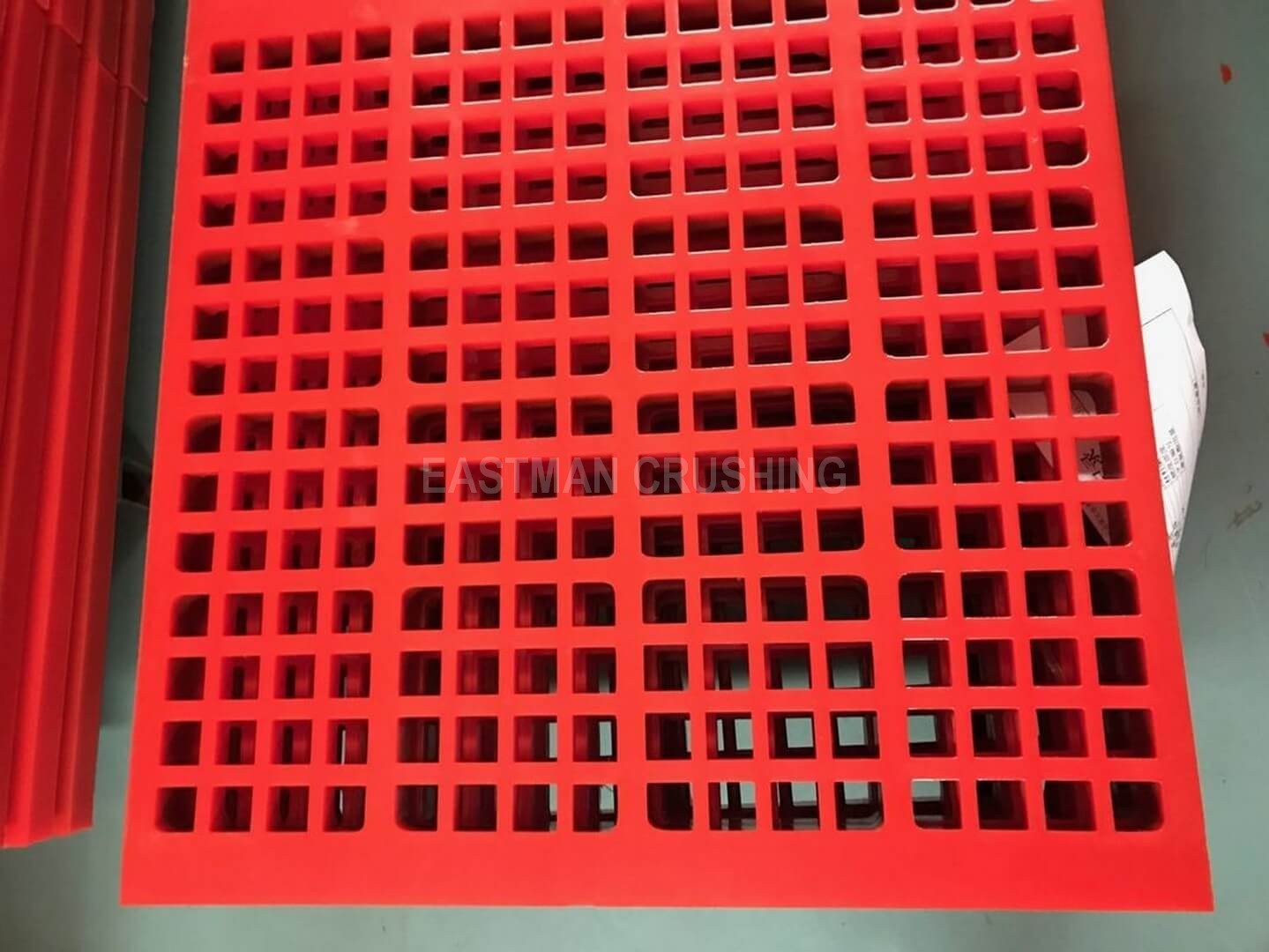

Customizable steel, nylon, PP material with diamond, rectangle mesh shape.

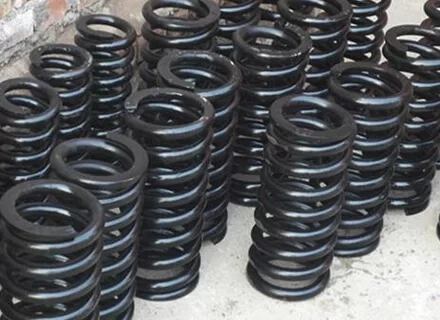

vibrating screen spring

Rubber isolation spring

Longer service life, little noise, stable resonance region.

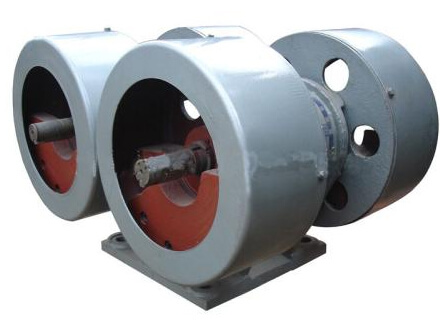

Eccentric shaft vibration exciter

High quality, stable and continuous performance.

vibrating screen working principle

According to motion theory, screening machines can divide into linear, circular, horizontal, eccentric shaft vibratory screens and inclined screen.
The vibratory screening machine is to utilize reciprocating vibration of the vibration generator produced. The processing of the screen separates the different size material by a single- or triple-deck screen. That is, according to the size of particles to separate. The underlayer is a small material, and the upper layer is coarse particle material. In the end, the coarse and fine particles are separated and the screening process is completed.

Some features highlight:

  • Screen feed: mixture of coarse and ifne particles
  • Material stratification: Nearsize and oversize particles at the top of bed
  • Separate screening: nearsize particles in contact with screen surface
  • Stratified region experience a high rate of screening

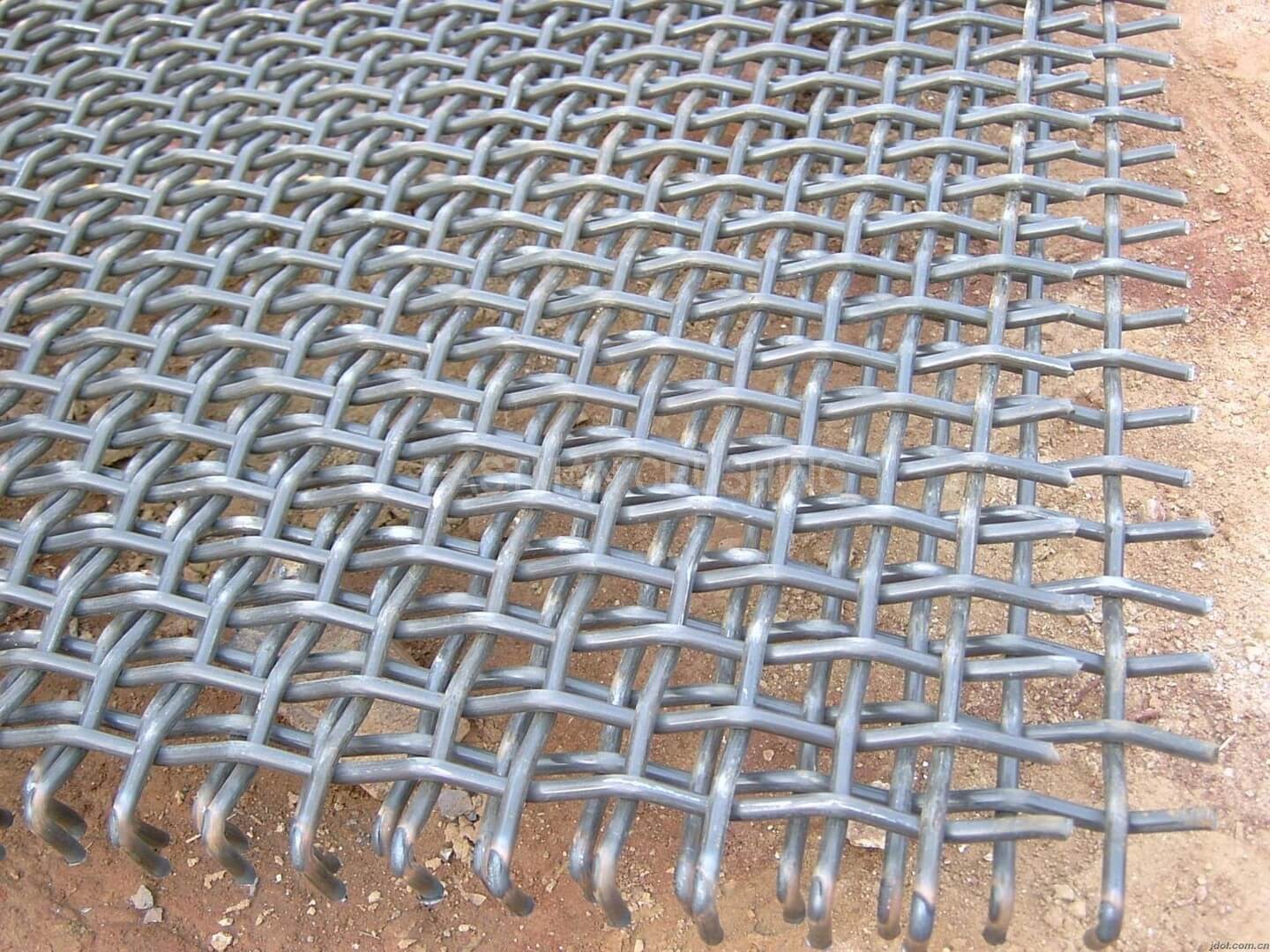

Types of screen mesh material

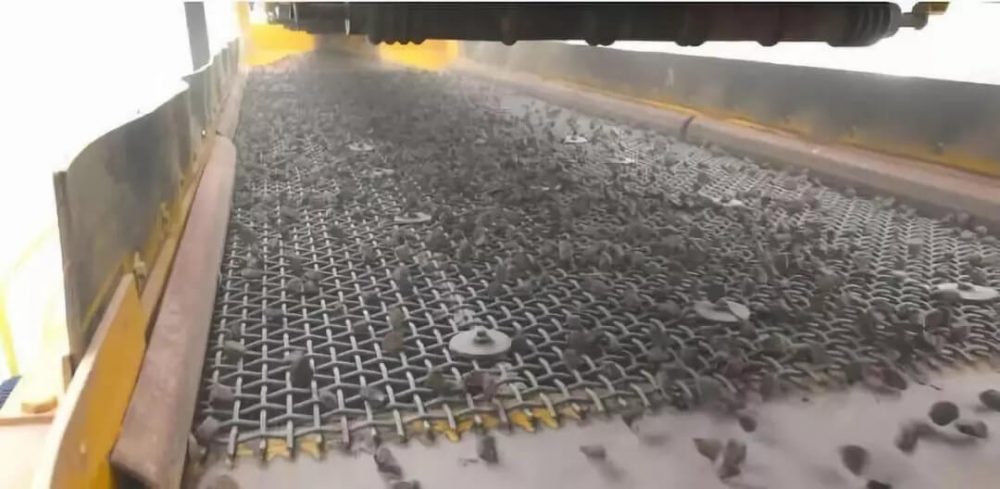

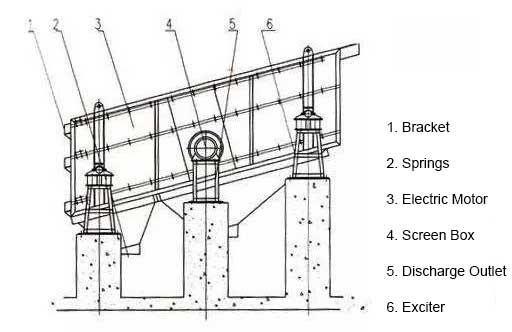

vibrating screen working
vibrating_screen
vibrating_screen

The single deck, double deck, and multilayer vibrating screen is the basis of the numbers of the layers. Because of the different screening materials, we also call it gravel screen, sand screen machine, aggregate screening, wet vibratory screens.

vibrating screen Technical specifications

Standard ModelLayerMax Particle size(mm)Sieve size(mm)Amplitude (mm)Capacity (t/h)Frequency (shift/mm)(° ) AngleCooperate MotorDimension L*W*HWeight (kg)
Model(W)Power
SZZ600× 12001401-25610-20100015-25Y112L1-42.21370× 890× 330340
SZZ2600× 12002401-25610-20100015-25Y112L1-42.21370× 890× 430360
SZZ900× 18001401-25620-25100015-25Y112L1-42.22150× 1358× 575550
SZZ900× 18002401-25620-30100015-25Y112L2 -432489× 1358× 770620
SZZ1250× 250011005-402-715085015-25Y1321S1-45.52762× 1714× 6801100
SZZ21250× 250021505-402-715085015-25Y1321S1-45.52702× 1714× 7401300
SZZ1500× 300011001-40822080015-25Y132M1-47.53320× 1449× 7872100

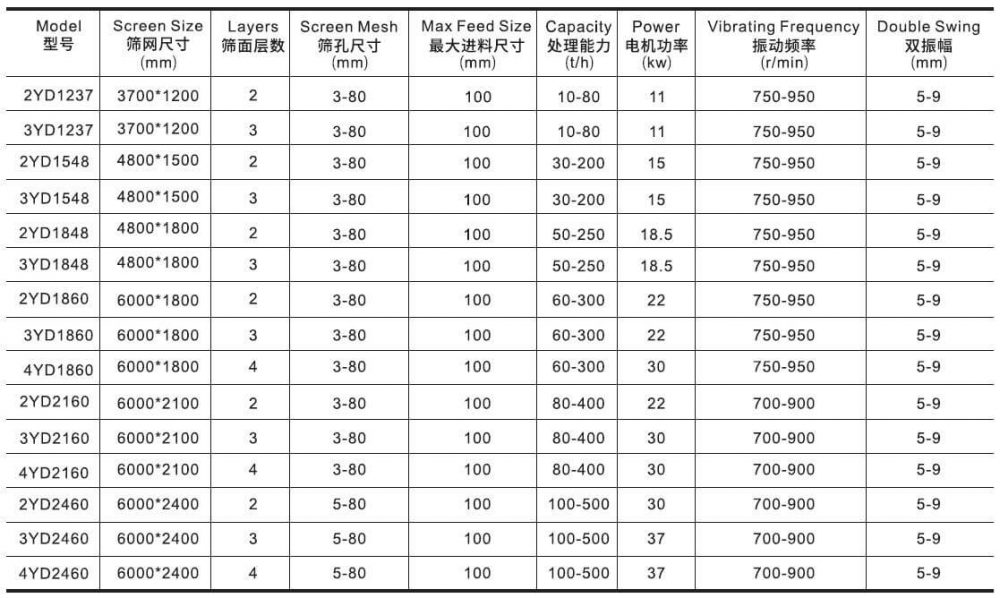

vibrating screen specification

Get our product detail & price

Quick quotation, free crushing flow design, on-site service! Respond to you within 24 hours.

features and advantages

  • The material screen drip line is long and has many screening specifications.
  • The eccentric block as an exciting force, a strong exciting force.
  • Sieve beams and sieve box connected by high strength bolts, no welding.
  • Sieve machine has the advantages of simple structure and convenient repair.
  • The small amplitude, high frequency, high dip structure, so this machine is of high efficiency, maximum, long life, low power consumption, low noise.

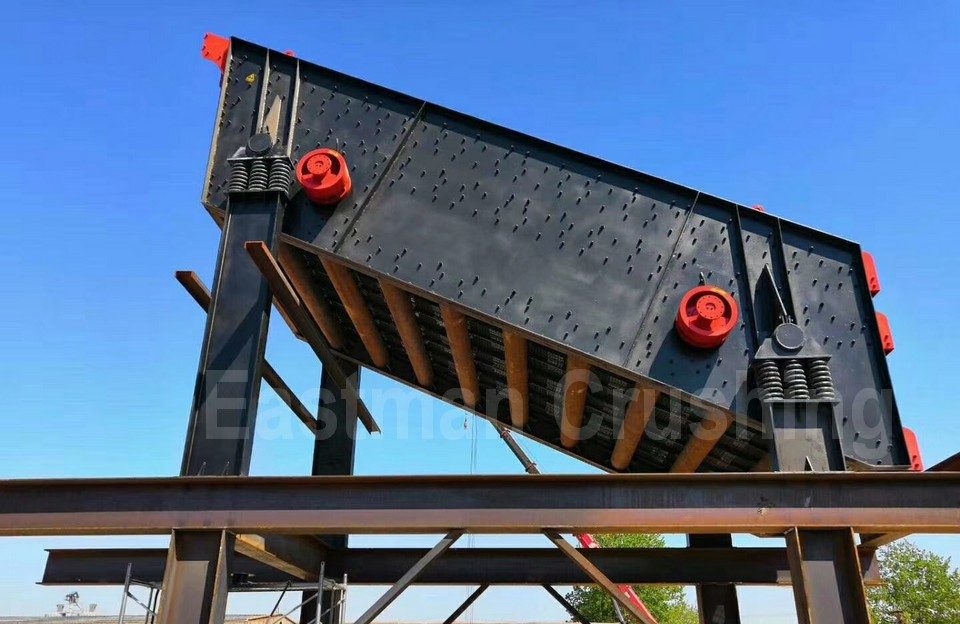

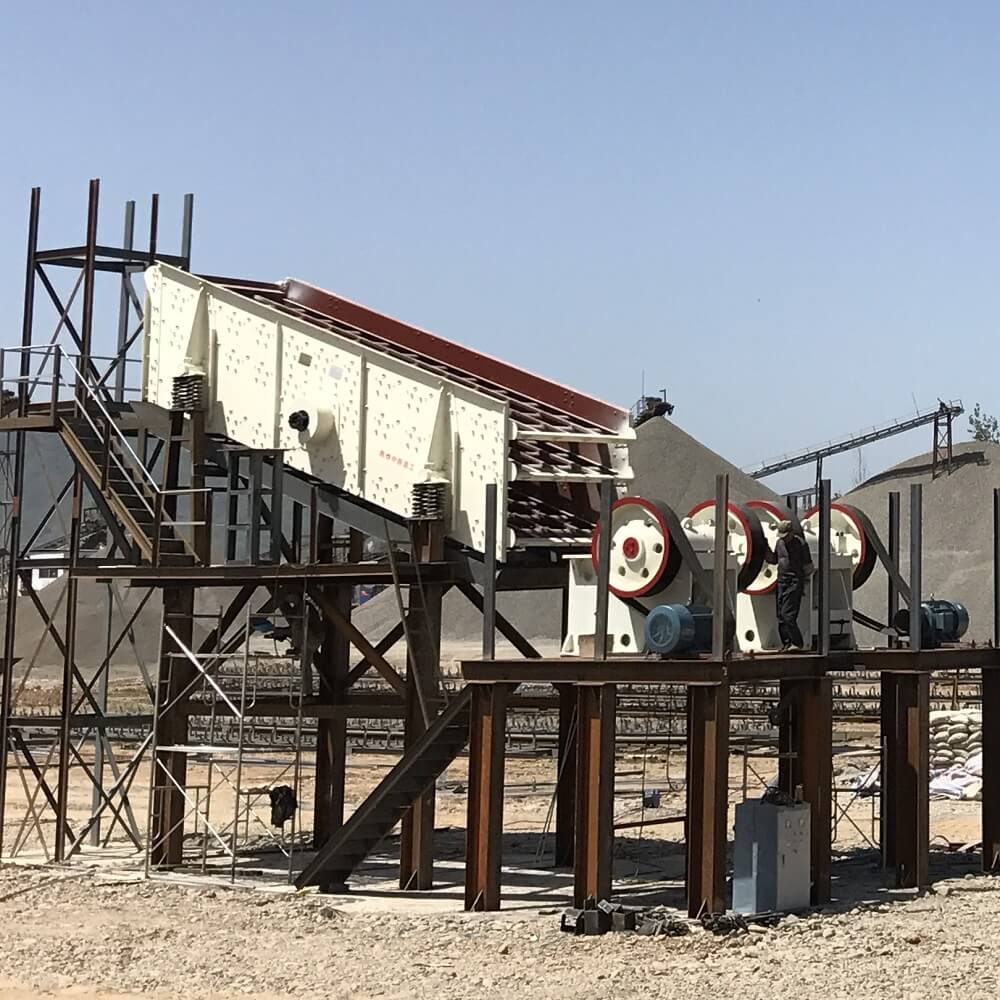

deploy the vibrating screen with steel structure base

Factors may affect screening result

1. The shape of the particle and screen size

Most screening material is cylinder or anomaly, and the screen size has both circular and rectangle. The shape of the material granule touch screen for particle whether passed has a big effect. The rectangle screen is good for the circular particle, and the circular screen for irregularity.

2. The opening rate of the screen surface

The more opening rate of the screen surface, the more passed.

3. The thickness of materials

If the materials are too thickness, the upside will difficult to pass. If the materials are too thin, the screening products will low, also undesirable.

4. The state of screen motion

The practice shows that level or vertical repeating motion of the screen, The screening effect is not good. The vibratory screeners combined the two motion is better.

5. The peculiarity of the material
All the size, humidity, friction and flowability of material will affect the screen. The humidity higher, friction bigger, flowability too bad, so the passing rate lower.
