Eastman Rock Crusher

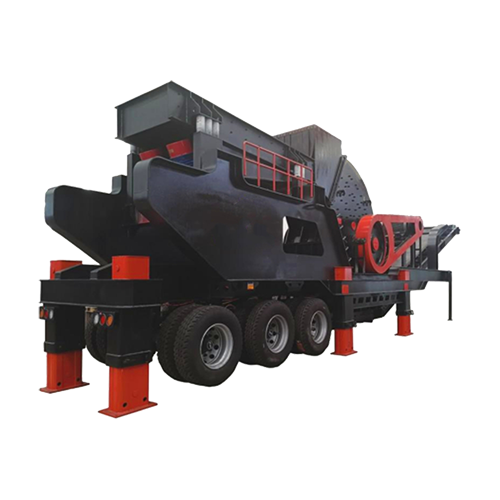

wheel type mobile crusher

[Capacity] 70-650t/ht/h
[Feed size] 350-8500mm
[Output size] <100mm
Design as you need

Capacity
70-650t/h

Input size
350-850mm

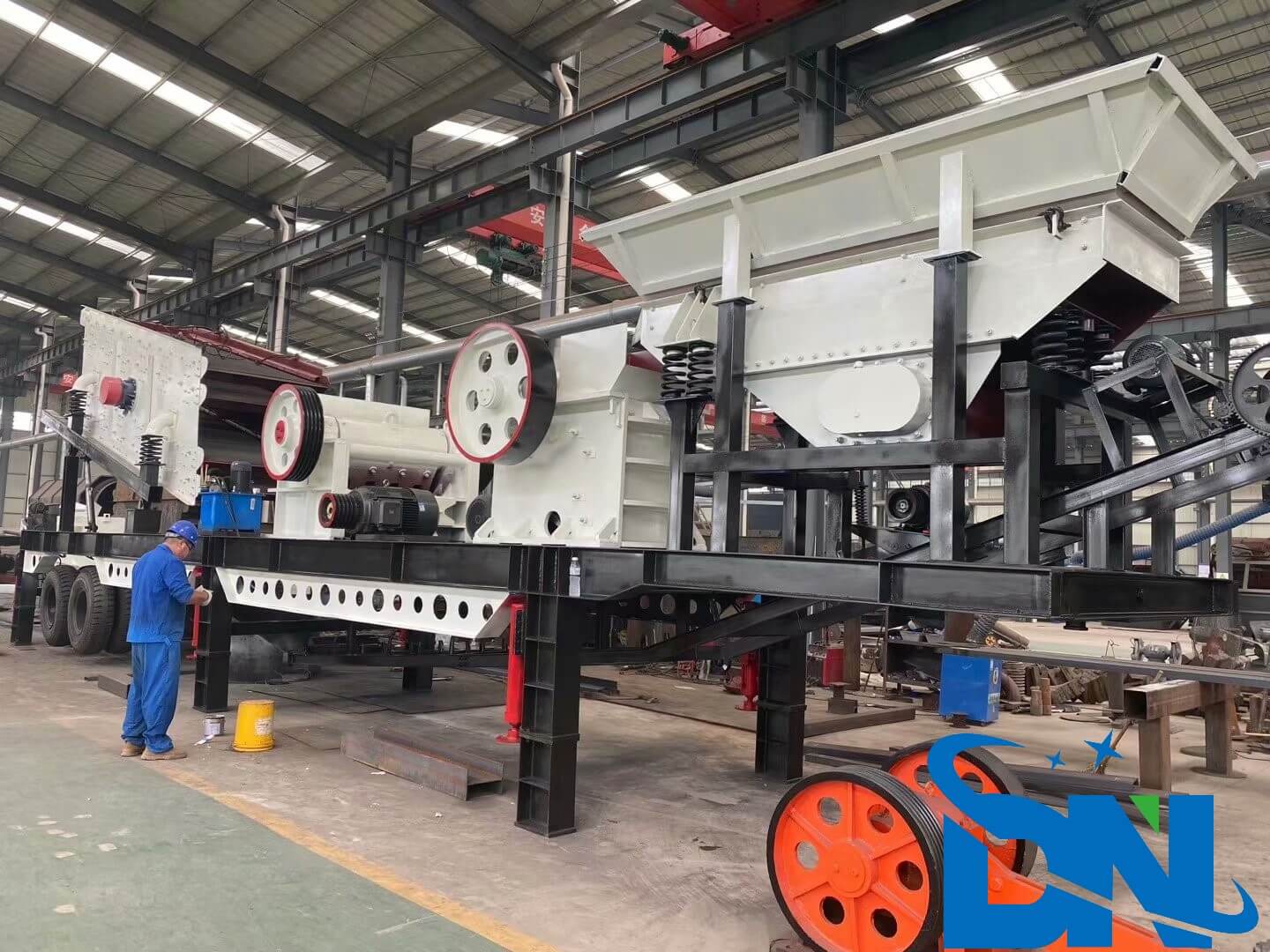

Crawler type mobile crusher is an advanced crusher plant, function and structure are highly customizable. Unlike other fixed rock crusher, it can be transfered easily in a varieties of rock crushing applications, like mining, building, construction, sand & gravel, construction waste, concrete, etc.
Configuration
Flexible combination of some of feeding, crushing, screening, sand making and so on systems.
Applications
mining, quarry, construction waste recycling, aggregate making, sand making, etc.

Highly customized for your needs

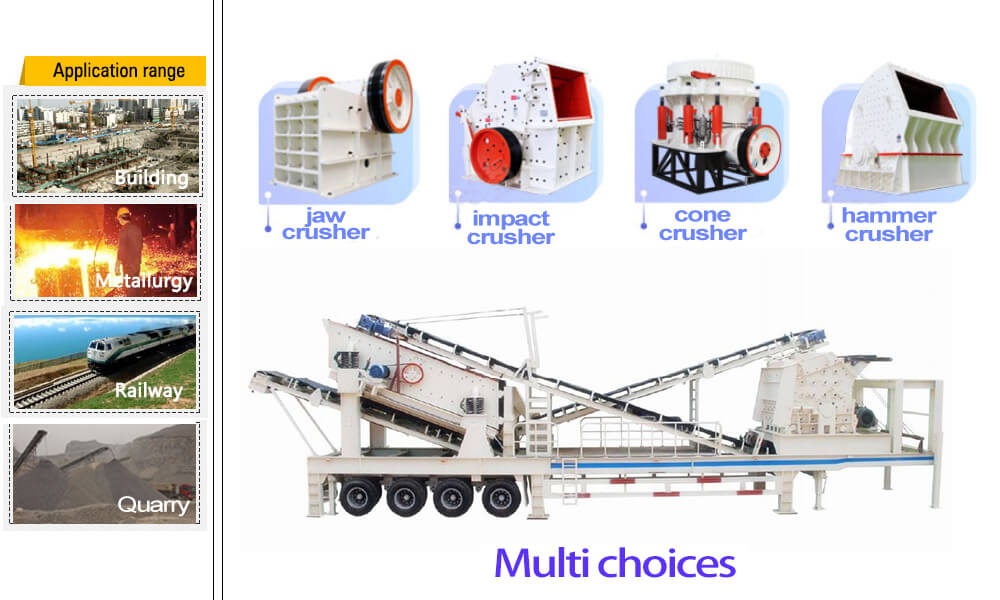

rock crusher applications

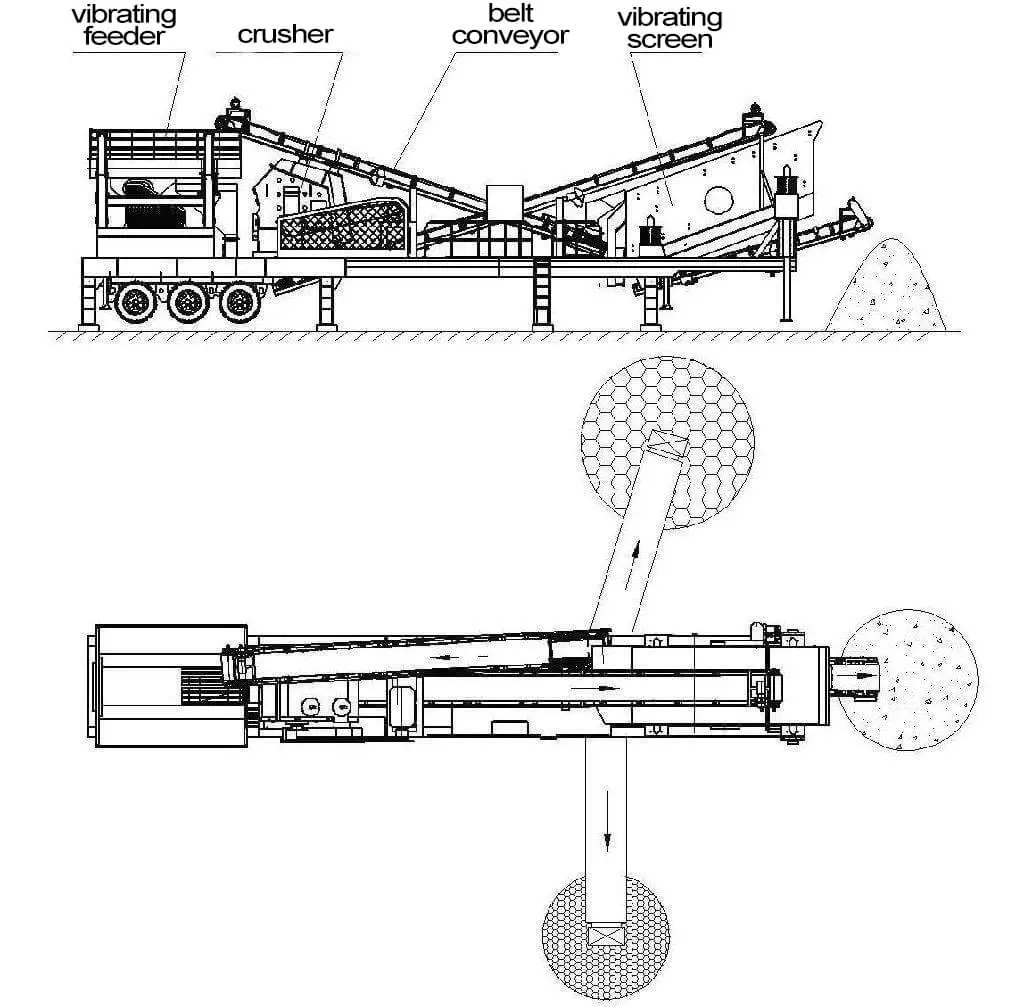

four main Functional systems

1. Continuous feeding

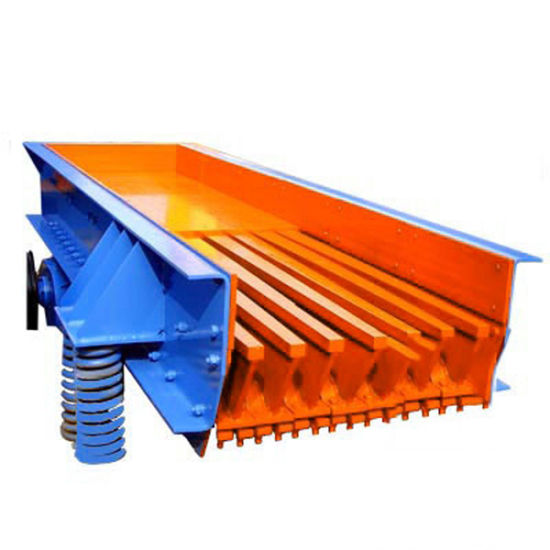

The most used feeder machine are hopper, vibrating feeder with grizzly bar.

feeding

2. Efficient crushing
The crusher is the core of complete crushing platn, jaw crusher, impact crusher, cone crusher are very popular.

3. Multilayer screening
vibrating screen can screen and grade the crushed materials into different piles.

screening

4. On-board conveyer
Belt conveyor is the important auxiliary equipment which is connect rock crusher, feeder, final product piles, etc.

conveying

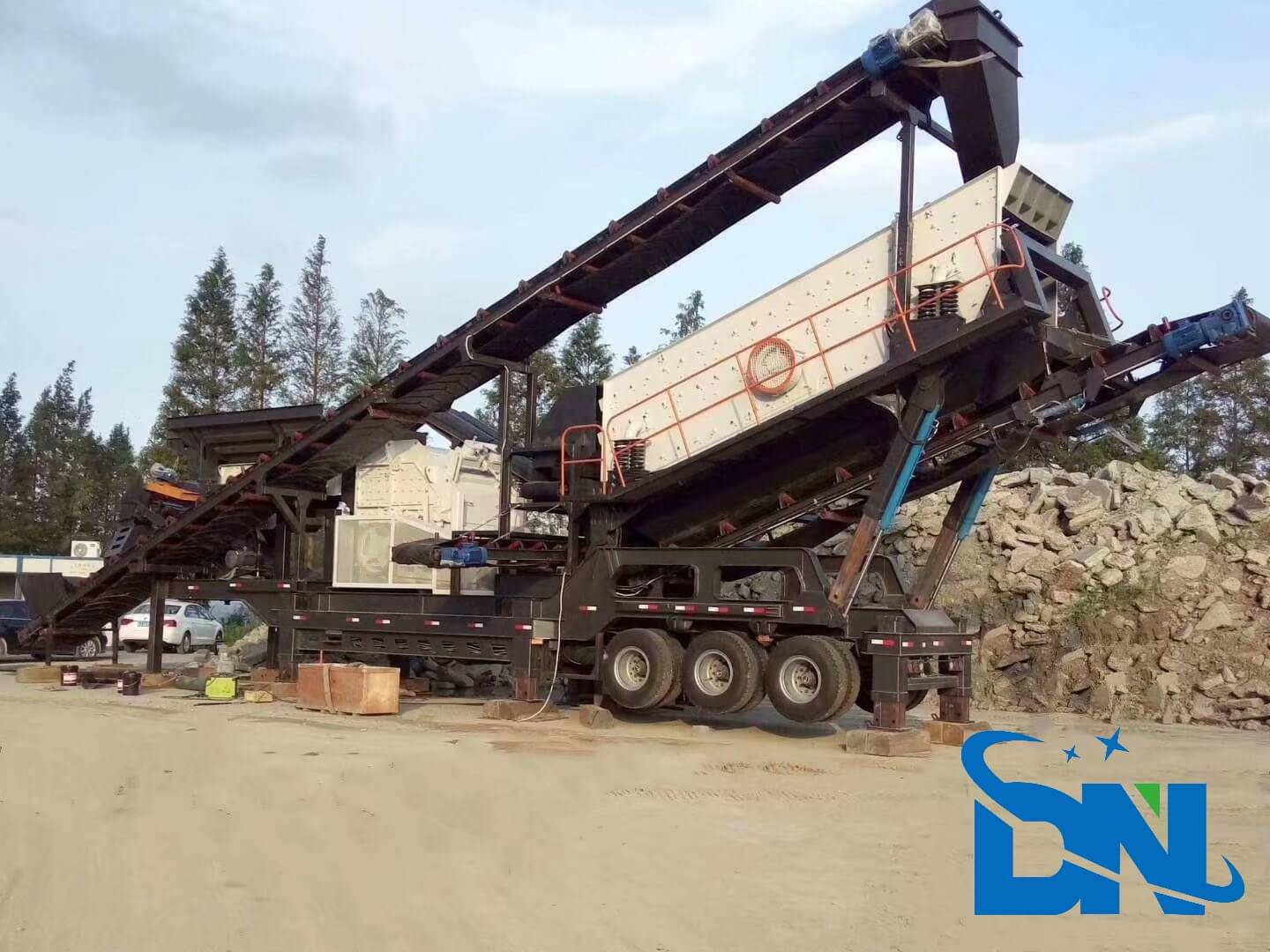

Easily transportable portable crusher

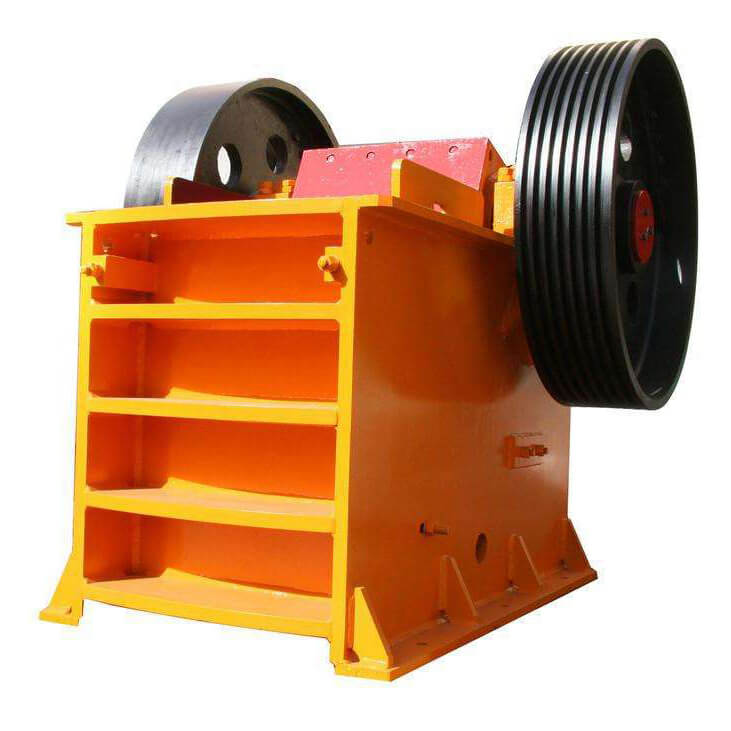

★Portable Jaw Crusher
There’s a sturdy tracked mobile jaw crusher with capability ranging from 70 – 300 tons to meet your specific requirements.

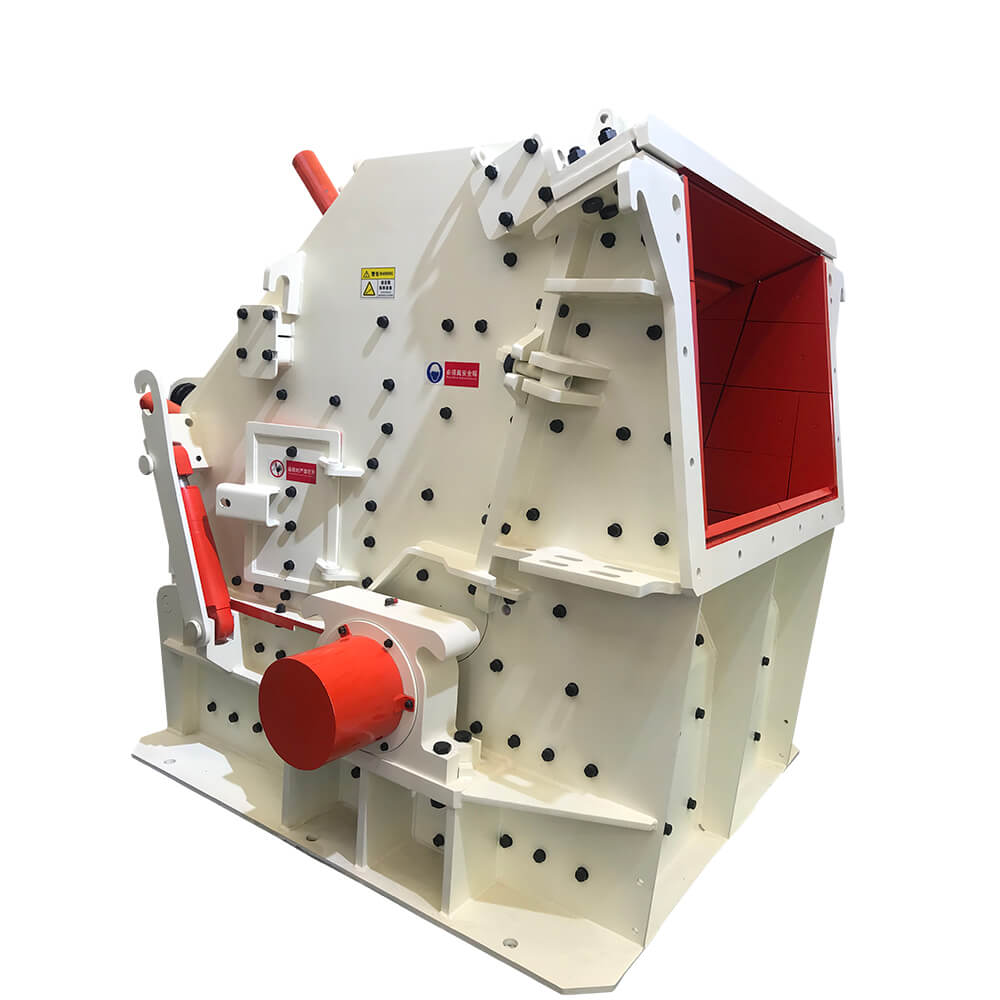

★Portable Impact Crusher
The mobile horizontal shaft impact crusher generally used in the primary, secondary or tertiary stage of crushing process, produce cubic shape aggregate forconstruction.

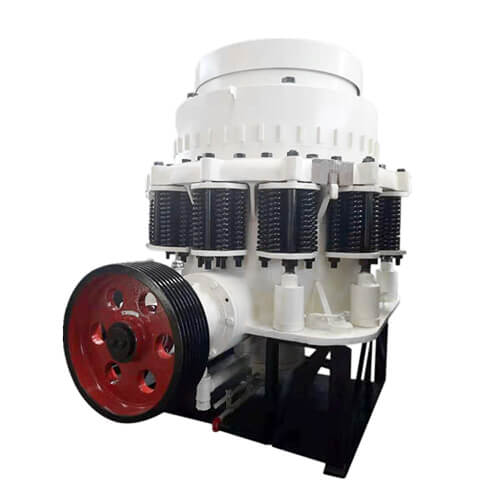

★Portable Cone Crusher
Our range of mobile cone crushers meet any size reduction challenge in secondary and tertiary crushing process, provide you with high quality materials and good shape. If the particle size of the processed material is small enough, they can also be operated as the primary crusher.

mobile crusher working gif animation

technical specifications

Portable Jaw Crusher
ModelVibrating grizzly feederJaw CrusherBelt machine SpecificationCapacity(t/h)Power(kw)Max size(L * W * H)(mm)
DN938P69DN380×95PE600×900B800×8M70-15091.513200×2900×4700
DN1142P710DN420×110PE750×1060B1000×11M90-20013415000×3100×5100
DN1349P129DN490×130PE900×1200B1200×13M150-30014617000×3300×5600
Portable Impact Crusher
ModelCircle Vibrating screenImpact CrusherBelt machine SpecificationCapacity(t/h)Power(kw)Max size(L * W * H)(mm)
3YD1848F12103YD1848PF-1210B650×7M70-300128.5-150.512500×3000×6500
3YD1860F12143YD1860PF-1214B650×8M90-400154-19013500×3000×6500
3YD2160F13153YD2160PF-1315B800×8M120-450210-29714000×3200×6800
Portable Cone Crusher
ModelCircle Vibrating screenCone crusher modelBelt machine SpecificationCapacity(t/h)Power(kw)Max size(L * W * H)(mm)
3YD1848DN10SX3YD1848DN1000S-XB650×7M70-30099-13413000×3000×6700
3YD1860DN12SX3YD1860DN1200S-XB650×8M120-400212.5-220.514000×3000×6700
3YD2160HP2003YD2160HP200B800×8M140-450257.5-264.514000×3200×6700

Get a Free flow design now

Quick quotation, free crushing flow design, on-site service! Respond to you within 24 hours.
