There is no metal in the world that can intervene in human economic life like gold, and have such a major impact on human society. Its dazzling luster and unparalleled physical and chemical properties have a magical eternal charm. Although the social status of gold has experienced vicissitudes, ups and downs, and ups and downs in the history of human civilization for thousands of years. But so far, it still maintains a sacred aura among many people, the wealth that the world seeks together.
gold ore processing flow
The process of gold ore processing and production mainly includes three processes: crushing, grinding and beneficiation.
In the crushing process, the three-stage closed-circuit crushing is more modern and suitable for high-hardness gold ore crushing, which can complete the work of ore crushing and partial dissociation, thereby improving the subsequent grinding efficiency;
In the grinding process, the second stage and one closed grinding is an efficient grinding process, which can make the gold ore grinding more fully;
Among the beneficiation processes, the representative new processes that have emerged in recent years mainly include: gravity separation, amalgamation, cyanidation, flotation, etc.
Gold is loved by consumers around the world. Not matter placer gold, or rock gold, Eastman can provide products and technical support for large scale and small scale gold mining plants. Contact us to do free design.
The First Stage: Crushing & Screening
Large pieces of gold ore are evenly sent to the jaw crusher or coarse crushing mobile station (primary crushing) by the vibrating feeder for coarse crushing; After coarsely crushed gold ore are screened by vibrating screens, they are sent to a single-cylinder hydraulic cone crusher (second crushing) for intermediate crushing; The crushed gold ore materials are sent to a multi-cylinder hydraulic cone crusher for fine crushing;
Jaw crusher is mainly used for medium size crushing of various ores and bulk materials. It can crush materials with a compressive strength of up to 320Mpa, divided into two types: coarse crushing and fine crushing. Eastman has PE and PEX series jaw crushers with complete product specifications. Its feed size is 125mm～1020mm, and the single machine output is as high as 600TPH. It is an ideal choice for primary crushing equipment.

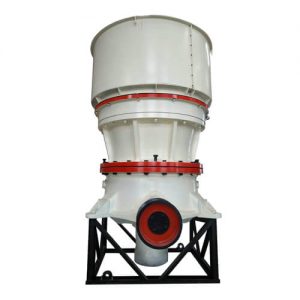

The GP (single-cylinder) hydraulic cone crusher is widely used in the medium and fine crushing process of iron ore, copper ore, gold ore and other metal mines. Eastman single-cylinder hydraulic cone crusher is a high-efficiency crusher designed with advanced American technology and the performance of high-quality materials in the industry.
Automatic control and easy operation: using PCL touch screen operation and hydraulic adjustment of the discharge method, the discharge port is easy to adjust, easy to maintain, and it is more convenient and efficient to remove and replace the fixed cone, reducing downtime.

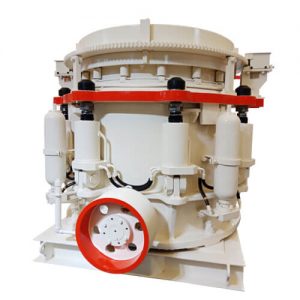

HP (Multi-cylinder) hydraulic cone crusher is a new generation of high-efficiency hydraulic cone crusher based on nearly 30 years of crusher research and development experience, combined with domestic and foreign advanced technology, after several generations of product development and application. On the basis of the traditional multi-cylinder hydraulic cone crusher spindle fixed, eccentric sleeve rotating around the spindle structure and laminated crushing principle, the HP series has carried out a breakthrough optimization of the equipment structure, which significantly improves the use performance and crushing capacity of the equipment. The hydraulic lubrication system is designed to ensure the reliable operation of the equipment, while the operation control is more intelligent and humane.

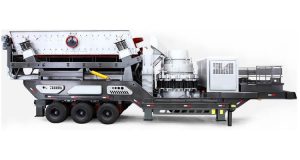

The tire-type mobile crushing station is widely used in the crushing process of mines. It can overcome the obstacles that the crushing site, environment, complex infrastructure and complex logistics bring to customers’ crushing operations, and truly provide customers with efficient and low-cost project operation hardware facilities . Eastman mobile tyre crusher has been successfully applied to mine crushing projects at home and abroad and plays an important role.
The Second Stage: Grinding
The gold powder of 0-12mm sieved by the vibrating screen is evenly sent to the ball mill for grinding, and sieved by the spiral classifier.

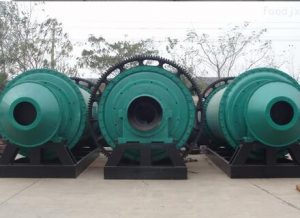

Ball mill is a commonly used and efficient grinding equipment. It is suitable for grinding various ores such as iron ore, gold ore, gold ore and lead-zinc ore in metal beneficiation, and is used to grind the ore to below 0.075mm for subsequent beneficiation processes. According to different ways of discharging, it can be divided into grid type and overflow type. The grinding method can be divided into dry and wet grinding methods.

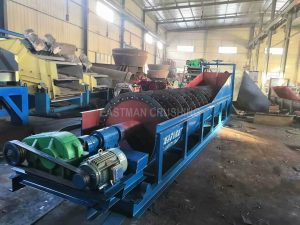

Spiral classifier is a kind of equipment for mechanical classification based on the principle that the solid particles have different specific gravity, so the speed of precipitation in the liquid is different. It can filter the powder ground out of the mill, and then screw the coarse material into the feed port of the mill using a spiral blade, and discharge the filtered fine material from the overflow pipe.
The Third Stage: Flotation + Drying
The gold powder that meets the requirements is sent to a flotation machine for mixed flotation, and then the obtained gold powder is sent to a dryer for drying to obtain gold fine powder.

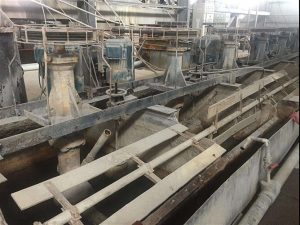

The SF series flotation machine can suck air and pulp by itself. The tank body is forward inclined, which is conducive to the front return of the foam; the double-blade impeller has a good stirring effect on the coarse sand at the bottom.
The BF series flotation machine is an improved version of the SF flotation machine, which is mainly used for the separation of minerals with a large proportion such as iron ore.

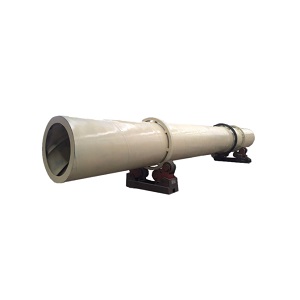

The dryer is a commonly used equipment after the mine beneficiation. The drying drum adopts the principle of the drum forward and reverse to achieve the non-winding effect of the dried items, so that the moisture in the material can be removed.
