Eastman Rock Crusher

hammer Crusher

[Capacity] 1-500t/h
[Feed size] <700mm
[Output size] 10-80mm

Capacity
1-1120t/h

Output size
10-350mm

Capacity
1-75t/h

Output size
0-10mm

Hammer crusher is a kind of rock crusher equipment which can crush materials with compressive strength no more than 150MPa.
Applications
Mining, refractory material, cement, sand & gravel, concrete sand, dry mortar, mechanical sand, and so on operations.
Materials
Cement, coal, white subdivision, gypsum, alum, brick, tile, limestone and other soft-medium hardness materials.

Hot sale models

PC600*400
Capacity: 5-25t/h
Feed size: <220mm
Discharge: 0-15mm

PC800*600
Capacity: 10-50t/h
Feed size: <350mm
Discharge: 0-15mm

Hot Sale

PC600*400
Capacity: 5-25t/h
Feed size: <220mm
Discharge: 0-15mm

PC800*600
Capacity: 10-50t/h
Feed size: <350mm
Discharge: 0-15mm

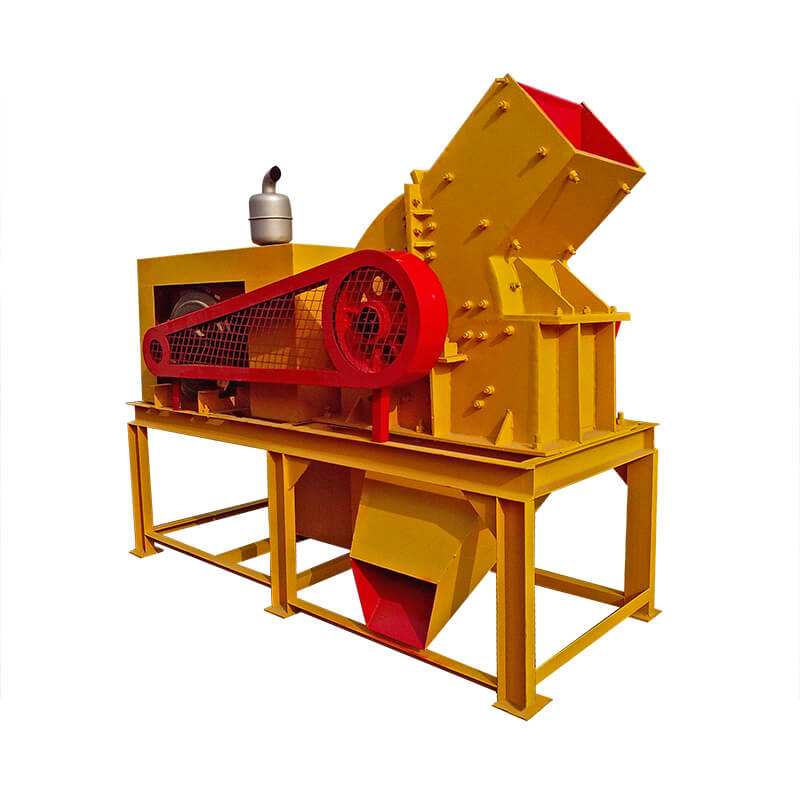

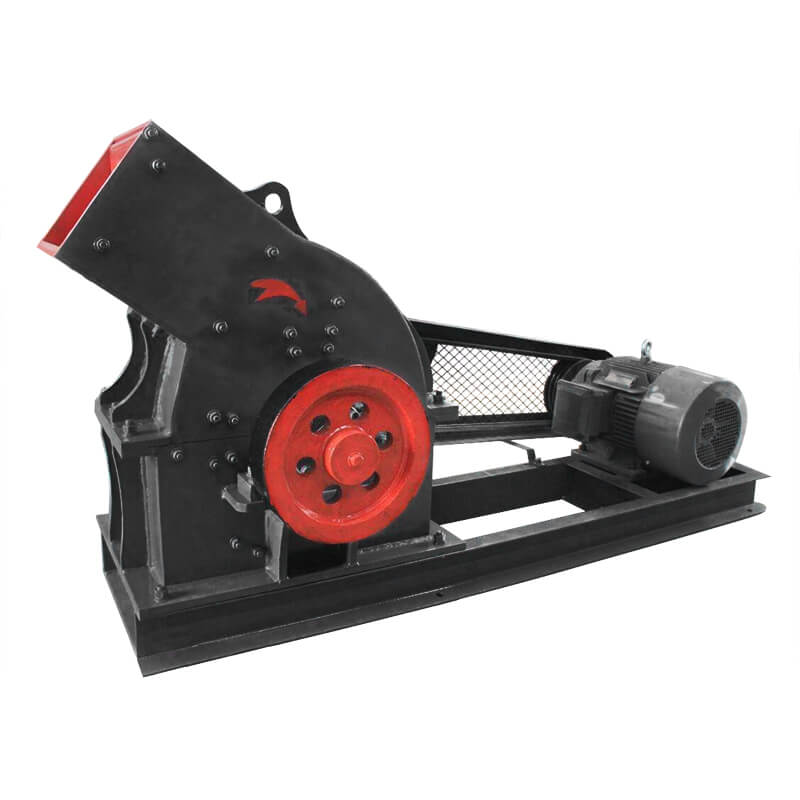

Eastman hammer crusher

hammer head

Good product quality

High crushing ratio, uniform cubic shape.

hammer heads

Wear-resisting head

High chromium alloy, wear resistance, impact resistance.

Adjustable discharge

Get required particles by adjusting the gap.

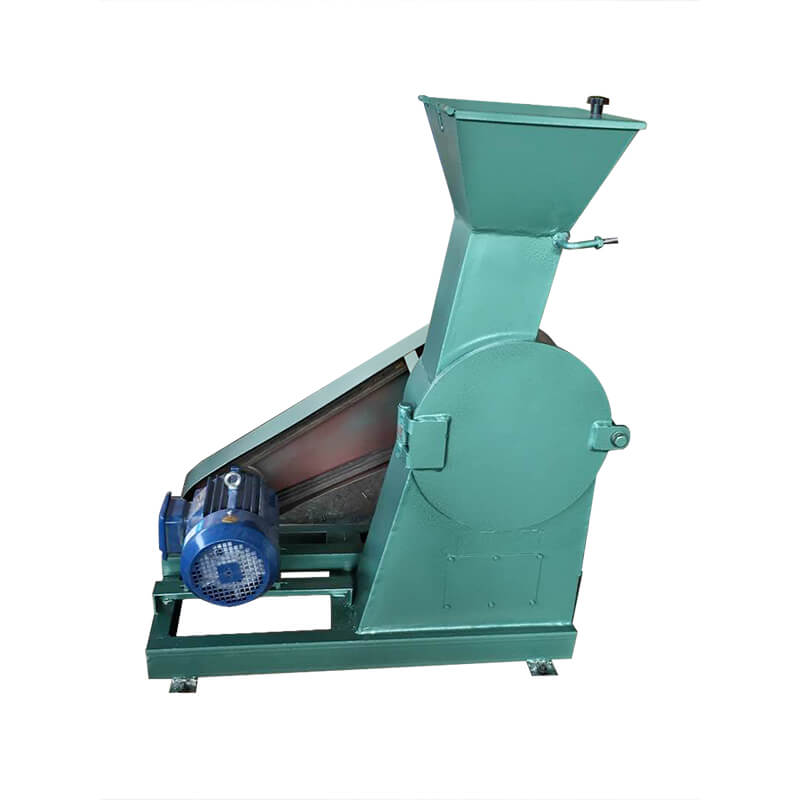

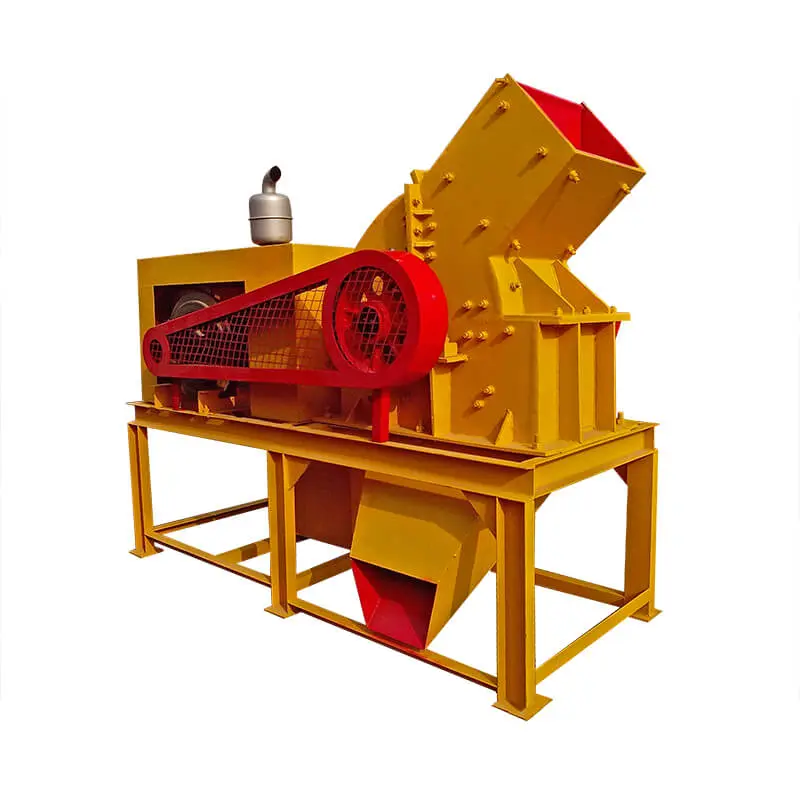

small hammer crusher

Eco friendly

Closed structure to reduce dust pollution.

Eastman is a crushing manufacturer with more than 30 years of experience, produces hammer crusher used for a variety of applications.

We not only can provide you with various types of rock crusher, but also can design reasonable crushing process for you free. Contact us to get the high configuration of equipment with competitive price now!

hammer crusher applications

working principle

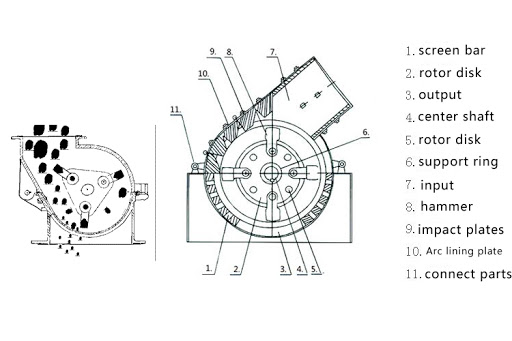

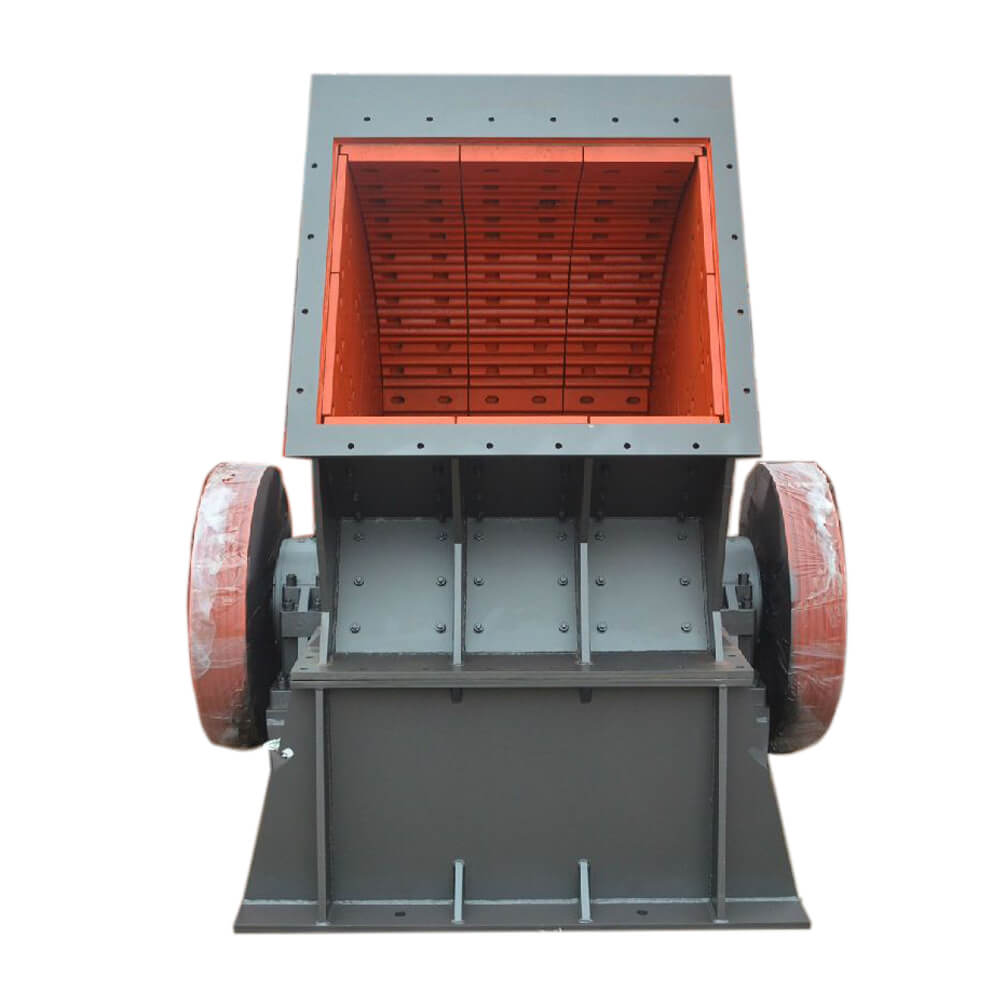

hammer crusher structure

technical specifications

ModelSpeedFeed size
(mm)
Out-put size
(mm)
Capacity
(t/h)
Weight
(T)
Power
(kw)
PC-400×3001450≤400-101-30.811
PC-600×4001000≤2200-155-251.522
PC-800×600980≤3500-1510-503.155
PC-800×800980≤3500-1510-603.575
PC-1000×8001000≤4000-1320-757.9115

Get our product detail & price

Quick quotation, free crushing flow design, on-site service! Respond to you within 24 hours.

Safety, Productivity, Profitability​

We supply two type of hammer crusher: small ring hammer crusher and heavy hammer crusher.

  • Ring hammer crusher through the high-speed rotation of the hammer body and material collision, to break the material, it has the characteristics of simple structure, large crushing ratio, high production efficiency, can be dry, wet two forms of crushing. However, it also has the disadvantages of high power consumption, low crushing efficiency and easy wear spare parts (hammer head).
  • Heavy hammer crusher is currently in the industry hammer crusher series of advanced technology, widely used in artificial sand production, quarrying plant, with high efficiency, energy saving and environmental protection characteristics. Less investment, faster results.
  • In addition, the hammer crusher is divided into reversible and irreversible two kinds, reversible hammer crusher is generally used for fine crushing; Irreversible hammer crusher is generally used for medium crushing.
  • Wear-resisting hammer head
    The hammer head of the hammer crusher is the main vulnerable parts. In view of this shortage, our hammer head adopts high-quality high manganese steel, and after strict heat treatment, a single austenite structure, service life than the ordinary manganese steel is more than five times higher, the efficiency of more than 30%.
  • High crushing ratio
    High crushing ratio, crush large piece into small uniform product, good cubic shape. In some cases, hammer crushers are used as primary crusher.
  • Flexibility
    With the compact structure, hammer crushers no need a wide working spaces, easy to install and maintain. We also provide stationary, mobile and portable models versions (wheeled portable and track-mounted), flexible in any applications.

Solutions & cases

Related products

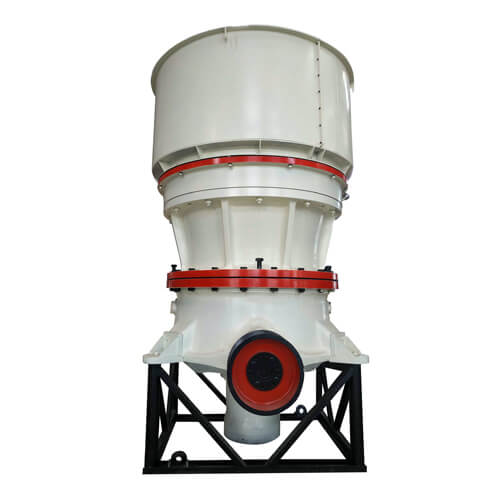

Hydraulic Cone Crusher
the most intelligent cone crusher

Hydraulic Cone Crusher
secondary, tertiary crusher

Primary Jaw Crusher
the most popular primary crusher

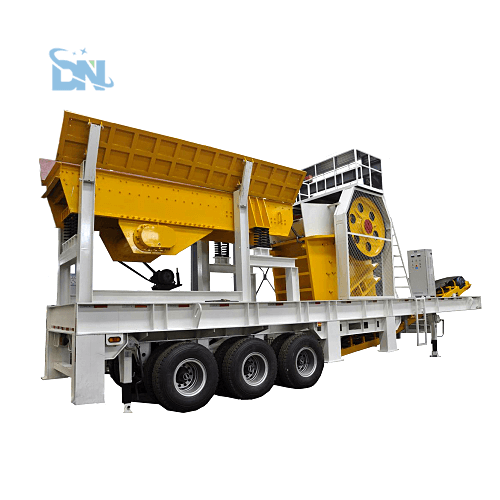

Mobile Crusher
