Eastman Rock Crusher

What are the 500tph rock crushers?

Shape
The rock crusher is the equipment responsible for processing large stones into various specifications of sand and gravel. Due to the difference in technology and technology, it is divided into jaw crushers, cone crushers, impact crushers, heavy hammer crushers and other types. What are the 500tph rock crushers?

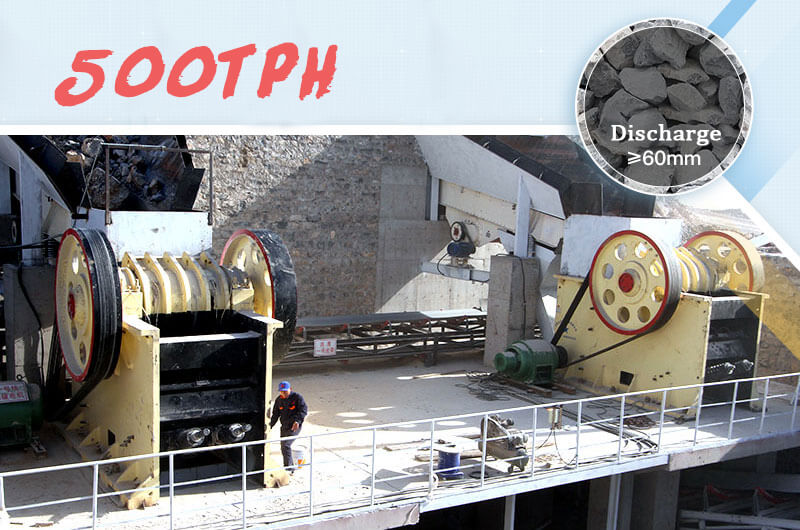

eastman 500tph crushers

EquipmentModelCapacity
Jaw crusherPE-1000×1200315-500t/h
Cone crusherHP500175-790t/h
Impact crusherPF-1520200-550t/h
Heavy hammer crusherPCZ1615280-550t/h
crusher
Shape

rock crushers

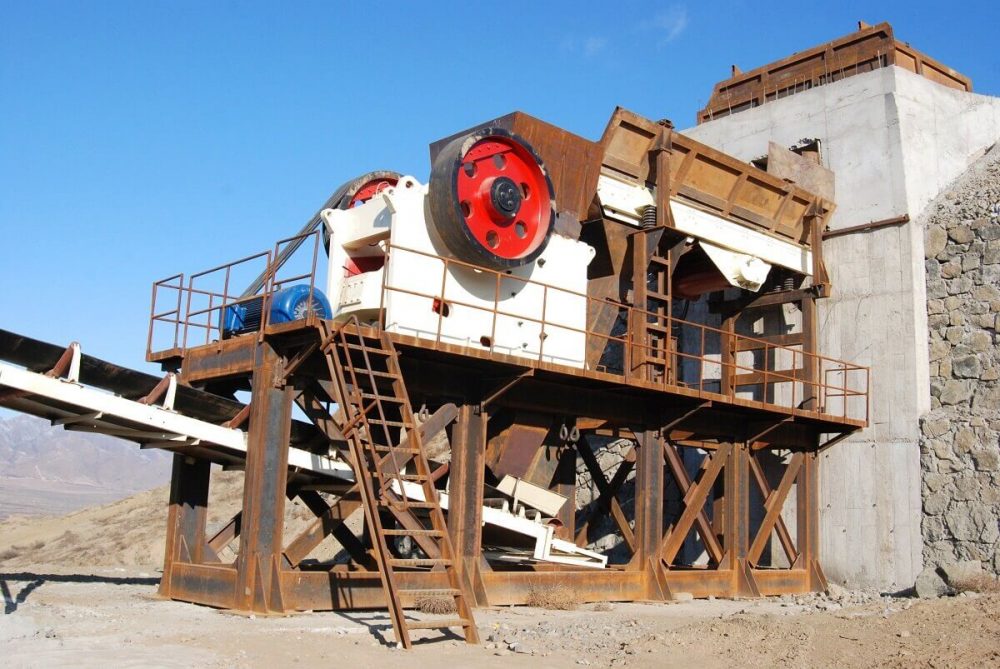

jaw crusher on site

jaw crusher

Capacity: 1-1120t/h
Output Size: 10-350mm
The jaw crusher can handle materials of various hardness, and is mainly used in the coarse crushing stage of the production line. It is one of the most commonly used crushers in the sand production line.
Stable operation, large crushing ratio, sturdy and durable liner jaws, overall economical and practical.

impact crusher

Capacity: 1-500t/h
Output Size: 10-80mm
Counterattack is often used in the secondary crushing stage, suitable for processing medium-hard materials with a compressive strength of not more than 350MPa, such as limestone, bluestone, concrete, etc.
The finished product can be cube-shaped, with good multi-angle and multi-sided grain shape, and strong controllability of particle size.

impact crusher aggregate

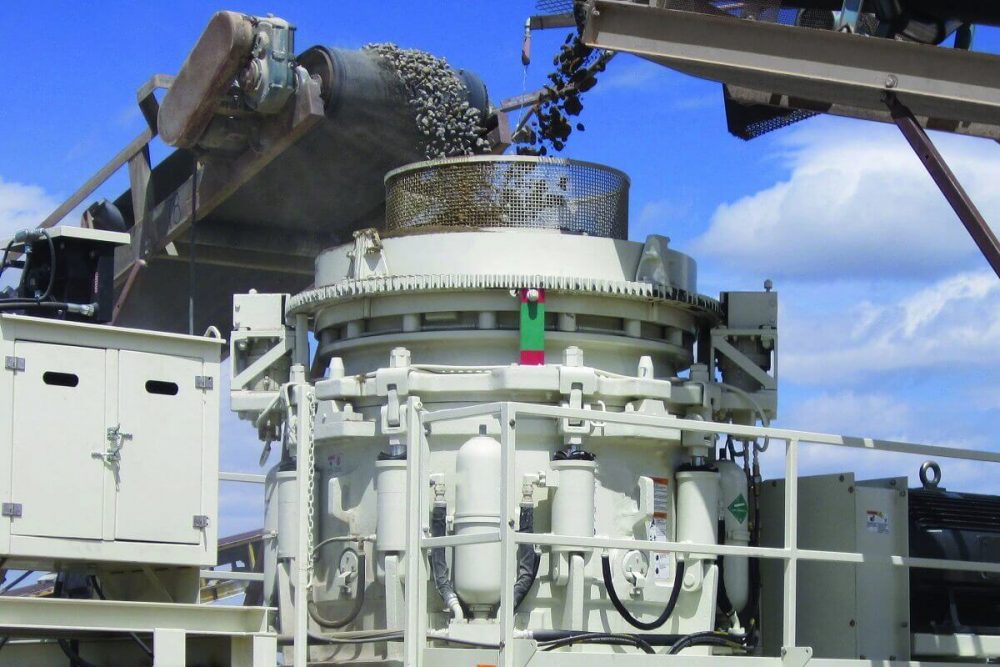

cone crusher

Capacity: 70-1200t/h
Output size: 5-40mm
Cone crusher is often used in the secondary crushing stage in the production line to process high-hardness materials, such as quartz stone, granite, basalt, etc., with a variety of cavity types to choose from;
The wearing parts made of high manganese steel have strong compressive resistance, good wear resistance, and easier and safer operation.

heavy hammer crusher

Different from the previous equipment, heavy hammer crushing can achieve “one-time forming”, which can crush materials ≤600mm into finished products ≤40mm at one time, without the need for secondary crushing
It saves investment costs, and the finished product has a very good grain shape, suitable for processing medium-hard materials such as limestone and coal gangue.

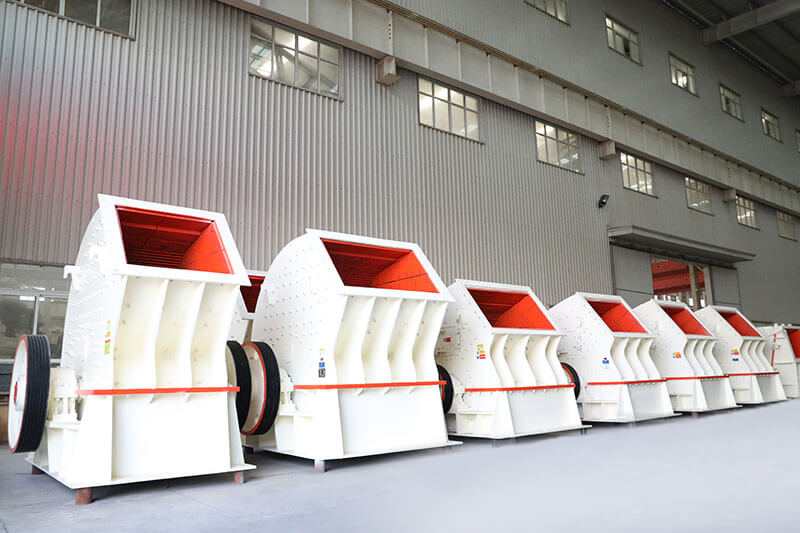

hammer crusher
