200TPH Sand-making Washing Plant

200TPH Granite Sand Making Plant

Material: Granite,  Hard Stones, ect
Capacity: 200TPH
Output size: 0-5mm, 5-15mm
Input Size: < 600mm

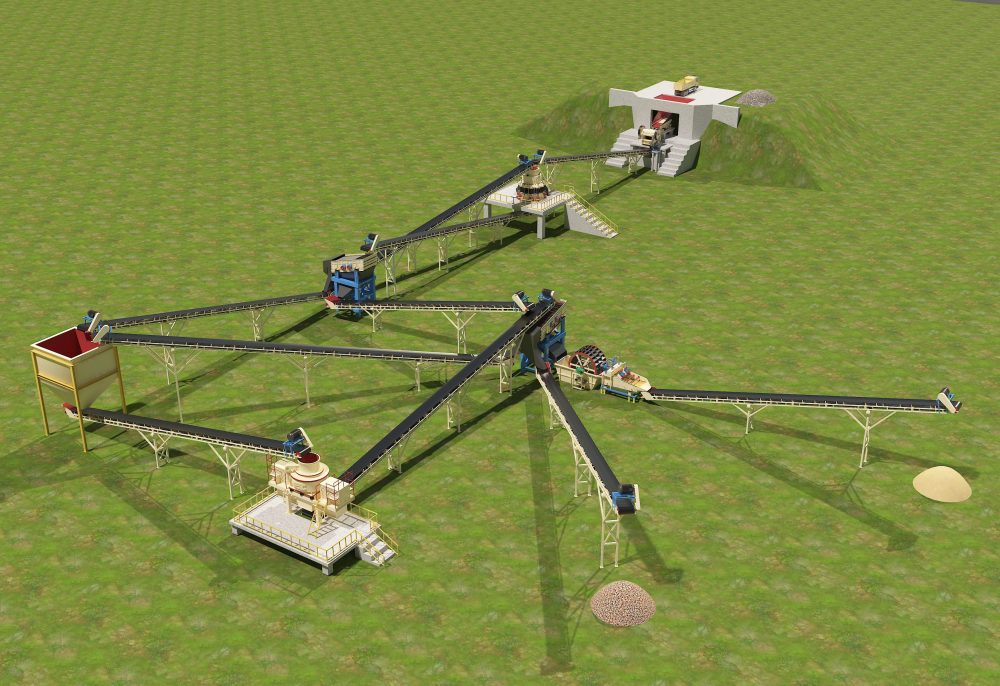

Schematic Diagram of Process Equipment

200TPH Sand-making Washing Plant

Equipment Used

  • Hopper
  • Vibrating feeder DN4911
  • Primary jaw crusher PE-750*1060
  • Cone crusher DN1400
  • Vibrating screen 2YD2160
  • VSI DN9000
  • 3-layer vibrating screen 3YD2160\
  • Sand Washing Machine
  • Belt conveyors.
Vibrating Feeder
Vibrating Feeder
Jaw Crusher
Jaw Crusher
Cone Crusher
Cone Crusher
Vibrating Screen
Vibrating Screen
VSI Sand Making Machine
VSI Sand Making Machine
sand washing machine

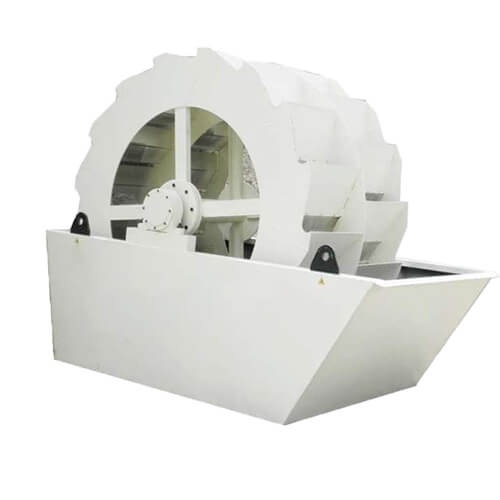

Sand Washing Machine
belt conveyor
Belt Conveyor

Flow Description

  1. Use a truck to transport the granite material to Hopper.
  2.  The granite material fell into a vibrating feeder( DN590*110 )because of the height difference.
  3. The granite material is transported to the jaw crusher(PE-750*1060) by the vibrating feeder. The material is for the first crushing through the jaw crusher.
  4. After first crushing the output from the jaw crusher is transferred by belt conveyor to secondary crushing machine compound cone crusher(DN1400) to get a smaller size.
  5. Then the smaller size goes the 2 layers vibrating screen(2YD2160) to get 3 product, screen mesh size 35mm and 5mm, the first size is size over 35mm go back to cone crusher for crushing to small size, the second middle size 5-35mm transport to transit hopper by belt conveyor to sand making machine (DN9000)to get fine material and transport to second vibrating screen(2YD2470), and third size 0-5mm material transport to second vibrating screen(2YD2470).
  6. When the material gets to the second vibrating screen(2YD2470).mesh size is 10mm and 5mm, the size over 10mm go back to transit hopper to sand making machine(DN9000), the 5-10mm material go the first output product, the size second output 0-5mm go to the sand washing machine to get a clean product. And finally get output size 0-5mm,5-10mm.

The flow chart can also be revised by the client’s requirement.

Our Advantages

➤Professional Engineers Team
Tell us raw material of your aggregate plant, input size, output size, and capacity. Our professional crusher plant engineers will quickly design a completely crushing process flowchart of simple, efficient, and low cost for you. Also, our engineers can design the flowchart according to your needs. Answer any aggregate questions for you.

➤Excellent Crusher Manufacturers
Our company was founded in 1985. In the aggregate crushing industries, we have 35+ years of machinery production of experience. All the equipment of stationary crusher plant, mobile(portable) crusher plant are choose the best materials, and meticulously casting every part. High Performance & Ease of Operation, many crushers equipment in stock.

➤Good Service
We have a office in Tanzania.The customers of regions near Tanzania and Tanzania, we provide installation service for free. All of our equipment, 1 Year Warranty.
