In the world of aggregate production and mining, downtime is the enemy. For many small to medium-scale operators, contractors working in remote areas, or businesses facing unreliable electrical grids, a standard electric-powered crusher can become a liability. This is where the small diesel stone crusher becomes a game-changing piece of equipment.
By replacing the standard electric motor with a diesel generator set or a diesel-powered engine, these crushers offer true independence from the power grid. Whether you are dealing with frequent power outages or operating a site without electricity, a diesel-powered unit keeps your production line moving.
So, what are the specific types of small diesel stone crushers? Based on industry standards and mechanical configurations, the most common models fall into two primary categories: the Small Diesel Jaw Crusher and the Small Diesel Hammer Crusher.
Below, we break down the features, mechanics, and ideal use cases for each type.
Why Choose a Diesel-Powered Crusher?
Before diving into the specific machinery, it is important to understand why operators are switching to diesel-driven options.
- Energy Independence: You are not reliant on local power companies or grid stability. As long as you have diesel fuel, you can crush stones.
- Portability: Most small diesel crushers are mounted on skids or wheels. The integrated engine makes them self-contained units perfect for moving between job sites.
- Emergency Backup: Even when grid power is available, a diesel unit serves as a reliable backup during peak production hours.
- Rural Applications: For farms, remote road construction, or mining claims far from substations, diesel is often the only viable power source.

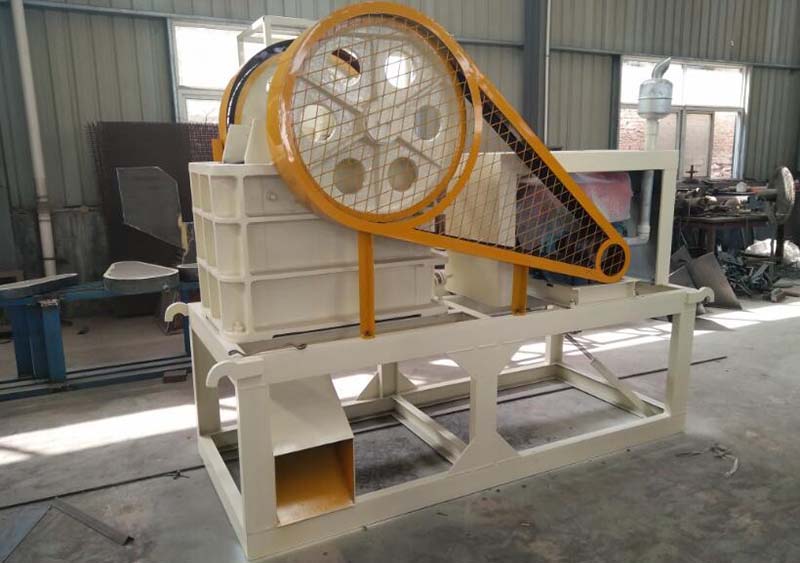

Type 1: The Small Diesel Jaw Crusher
The Small Diesel Jaw Crusher is arguably the most popular choice for primary crushing applications. This machine takes the classic “jaw crusher” design—famous for its immense crushing force and ability to handle hard, abrasive materials—and pairs it with a diesel engine.
How It Works
In a standard electric jaw crusher, an electric motor drives a belt and pulley to move the eccentric shaft, creating the “chewing” motion of the fixed and movable jaw plates. In the diesel version, the electric motor is removed and replaced with a diesel generator set or a diesel engine.
The diesel engine burns fuel to generate rotational energy, which is then transmitted via V-belts to the eccentric shaft. The result is a mechanical motion identical to the electric version.
Key Features & Benefits
- Identical Crushing Capacity: Because the mechanical action is the same, the diesel-powered jaw crusher offers the same tons-per-hour (TPH) output as its electric counterpart.
- Superior Material Hardness: Jaw crushers excel at crushing hard rocks like granite, basalt, and river pebbles. The diesel version retains this ability entirely.
- Excellent Particle Shape: The output is typically coarse to medium-sized stones with minimal fines, making it ideal for road base or feed for secondary crushers.
- Adjustable Discharge: You can adjust the gap between the jaws to control the final product size.
Best Applications for Diesel Jaw Crushers
- Primary crushing of hard ore in small-scale mining.
- Processing construction waste and demolition debris off-grid.
- Crushing mountain stone for rural road repairs.
- Quarries that need a mobile primary unit to feed a stationary conveyor.
SEO Tip: If your customer asks, “Can I crush hard granite with a diesel crusher?” the answer is yes—specifically with the jaw crusher variant.

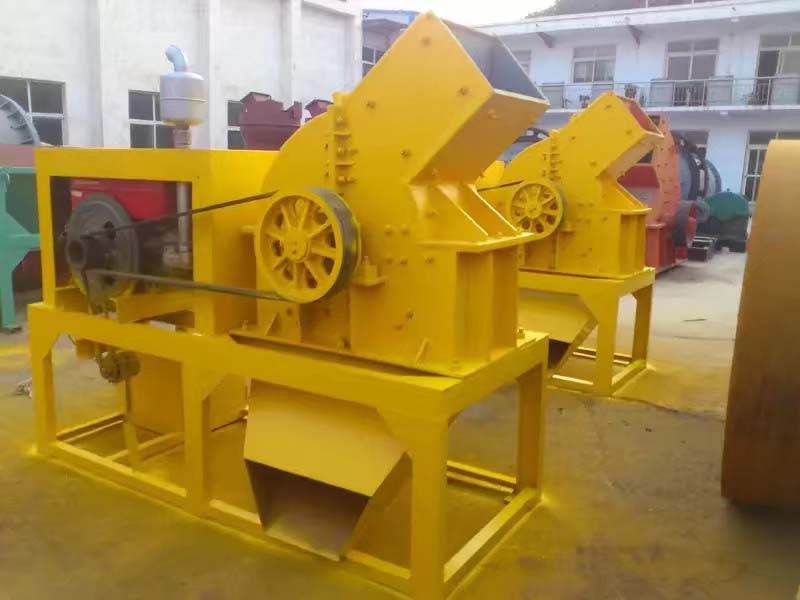

Type 2: The Small Diesel Hammer Crusher
The second major category is the Small Diesel Hammer Crusher. While the jaw crusher is the “brute force” machine, the hammer crusher is the “high-speed impact” specialist. This machine integrates a small hammer mill with a diesel engine to achieve one-time forming of crushed material.
How It Works
Inside the crushing chamber, a rotor equipped with high-speed hammers spins rapidly. As stones enter the chamber, they are struck by the hammers, shattered against the breaker plates, and collide with each other.
In the diesel version, the diesel engine drives the rotor directly. Because hammer crushers typically rely on high RPMs rather than high torque, diesel engines are a perfect match for this application.
Key Features & Benefits
- One-Time Forming (Cascade Crushing): Unlike jaw crushers that may require a secondary cone crusher to make fine material, the hammer crusher can reduce large stones directly into sand or fine gravel in a single pass.
- Simplified Process Flow: Because it achieves “one-time forming,” you often do not need a secondary or tertiary crusher. This saves money on additional equipment and conveyors.
- Lower Maintenance on Abrasive Materials: While not suitable for extremely hard stone (such as quartzite), it is highly efficient for medium-hardness materials (limestone, coal, gypsum, shale).
- Compact Footprint: Adding a diesel engine to a hammer crusher keeps the unit very compact, perfect for confined job sites.
Best Applications for Diesel Hammer Crushers
- Processing limestone for agricultural lime (soil conditioner).
- Crushing coal or coke for boiler fuel in remote areas.
- Producing artificial sand from soft rock types.
- Recycling old bricks and concrete blocks into fine aggregates.
Performance Note
It is important to note that the diesel hammer crusher shares the same processing power as the traditional electric hammer crusher. You do not lose efficiency by switching to diesel; you only gain mobility and energy independence.
Diesel Jaw vs. Diesel Hammer: How to Choose?
If you are trying to decide which small diesel stone crusher is right for your business, use the comparison table below to guide your decision.
Feature | Diesel Jaw Crusher | Diesel Hammer Crusher |
Crushing Style | Compression (Squeezing) | Impact (Hitting) |
Raw Material Hardness | High (Granite, Basalt) | Medium (Limestone, Coal) |
Output Shape | Irregular but strong | Cubical or fine powder |
Moisture Content | Handles wet/sticky material well | Clogs with high moisture |
Crushing Stages | Usually Primary (needs secondary) | Single Stage (One-time forming) |
Wear Parts Cost | Jaw plates (lower cost) | Hammers/Liners (higher frequency) |
Fuel Efficiency | Steady fuel burn | Variable (higher at full load) |
The Diesel Power System (Generator vs. Direct Drive)
When sourcing a small diesel stone crusher, you will notice two configurations regarding the diesel engine:
- Integrated Diesel Generator Set: The diesel engine is coupled to a generator head that produces electricity. That electricity then runs the crusher’s motor. Pros: You can plug other tools (lights, conveyors) into the generator.
- Direct Diesel Drive (Clutch System): The diesel engine connects to the crusher’s pulley via a clutch. Pros: More fuel efficient and slightly lower maintenance because you avoid power conversion loss.
Most small diesel stone crushers for sale today use a direct-drive or belt-drive system from the diesel engine to the crusher, as this is more mechanically efficient for hard rock breaking.
Operational Tips for Longevity
To ensure your diesel crushing investment lasts for years, follow these maintenance protocols:
- Fuel Quality: Always use clean, filtered diesel. Contaminated fuel is the killer of diesel injectors in dusty crushing environments.
- Air Filters: A crusher creates extreme dust. Upgrade to a heavy-duty, pre-cleaned air filter system for the diesel engine intake.
- Jaw Plate Adjustment: Check the jaw dies daily. If they are worn unevenly, flip or replace them to maintain the desired output size.
- Hammer Balancing: For hammer crushers, ensure the rotor hammers are balanced. An unbalanced rotor running off a diesel engine will destroy the bearings.
- Regular Idling: Allow the diesel engine to idle for 3-5 minutes before heavy crushing to circulate oil, and idle for 5 minutes before shutting down to cool the turbo (if equipped).
Conclusion: Finding Your Perfect Diesel Solution
Choose the Small Diesel Jaw Crusher if you are crushing hard, abrasive rocks and need a durable primary crusher to handle boulders up to 500mm.
Choose the Small Diesel Hammer Crusher if you are working with medium-hardness materials (like limestone or coal) and want the benefit of one-time forming to produce fines or sand directly.
Both machines offer the same crushing capacity as their electric versions, with the added benefit of operating anywhere you can pour diesel fuel.
Are you ready to eliminate downtime and crush anywhere? Browse our inventory of small diesel jaw crushers and diesel hammer crushers today. Contact our engineers to find the right horsepower and jaw size for your specific rock type.
