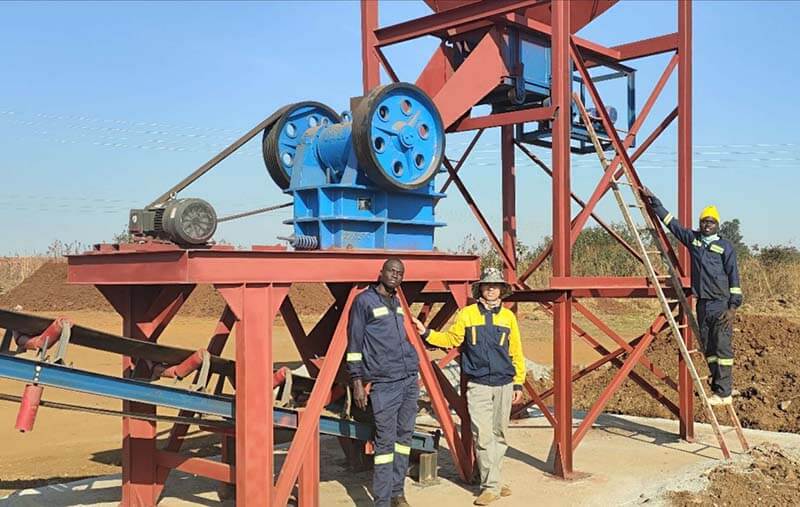

Processing abrasive rock is one of the toughest challenges for crushing plants. Materials containing hard, abrasive minerals can rapidly wear jaw dies, cone liners, mantles, impact components, and other crusher parts. If wear is not controlled, the result is more frequent shutdowns, higher replacement costs, unstable production, and increased cost per ton.
However, abrasive rock does not have to mean uncontrollable wear. The most effective approach is to treat wear as a whole-process problem, not simply a wear-part problem. Feed preparation, crusher configuration, operating settings, material characteristics, and wear monitoring all influence how components deteriorate.
So, how to reduce rock crusher wear when processing abrasive rock? The answer is to control the material entering the crusher, match the machine and wear parts to the application, maintain stable operating conditions, and use actual production data to optimize the process.
What Makes Abrasive Rock Hard on Crushers?
Before selecting wear parts or changing operating parameters, operators should understand the material being processed. Abrasiveness and hardness are related, but they are not the same. A rock can be extremely hard without producing the same abrasive effect as another material with a different mineral composition.
Important material characteristics include:
- Mineral composition and abrasive mineral content
- Rock hardness and compressive strength
- Abrasiveness
- Feed-size distribution
- Moisture and clay content
- Particle shape and fracture characteristics
- Required reduction ratio
Quartz-rich rocks, for example, can be particularly demanding because quartz is highly abrasive. Granite, quartzite, some basalt deposits, and other hard rocks can therefore produce significantly different wear rates from softer materials.
For an industrial crushing project, testing the actual feed material is more reliable than selecting a wear strategy based on the rock.
Identify the Dominant Wear Mechanism
Crusher wear may result from several mechanisms at the same time:
- Abrasive sliding and rubbing
- Impact from large particles
- Compression forces
- Repeated fatigue
- Localized high-pressure contact
Understanding the dominant mechanism helps determine whether the solution should involve a different wear material, feed arrangement, crusher setting, or operating strategy.
Control the Feed Before It Enters the Crusher
One of the most effective ways to reduce crusher wear begins upstream of the crusher. A crusher should not be expected to compensate for poorly prepared feed.
Oversized rocks create excessive impact and crushing forces, while excessive fines may increase rubbing and contribute to unfavorable wear patterns in crushing applications. A poorly distributed feed can also concentrate crushing action in specific areas of the chamber.
Manage Feed Size and Gradation
The feed should be compatible with the crusher’s design limits and selected chamber. Operators should pay particular attention to:
- Maximum feed size
- Percentage of fines
- Oversize particles
- Feed-size distribution
- Moisture and clay content
Where appropriate, a grizzly or scalping screen can remove unsuitable fines before primary crushing. Proper feed preparation can reduce unnecessary loading and help the crusher work closer to its intended operating conditions.
Maintain an Even Feed
Consistent feed distribution is equally important. If material enters one side of the crushing chamber disproportionately, certain sections of the wear components may deteriorate much faster than others.
A stable feeding system should provide:
- Even material distribution
- Consistent feed rate
- Minimal segregation
- Appropriate surge-bin control
- Correct feeder settings
The objective is not simply to keep the crusher full, but to keep it properly and evenly loaded.
Match the Crusher and Wear Parts to Abrasive Rock
There is no universal wear part that is best for every abrasive-rock application. Crusher selection should consider the material characteristics, reduction requirement, capacity, final product size, and expected operating conditions.
Jaw crushers, cone crushers, and other crushing machines create different crushing actions, so their wear components experience different stresses.
Choose the Correct Chamber and Wear Profile
The crusher chamber has a major influence on material flow and wear distribution. A suitable chamber should match:
- Feed characteristics
- Required reduction ratio
- Product size
- Desired capacity
- Material abrasiveness
Wear profiles should also be selected for the actual application rather than simply choosing the most expensive or thickest available component.
A practical rule is: match the wear solution to the crushing application, not just the crusher model.
Consider Cost per Ton, Not Just Wear-Part Price
A cheaper liner is not automatically more economical, and the longest-lasting liner is not necessarily the best solution.
A more useful calculation is:
Wear-part cost per ton = Total wear-part cost ÷ Tons processed
For a complete evaluation, also consider:
- Replacement labor
- Shutdown time
- Lost production
- Energy consumption
- Product-quality changes
- Spare-parts inventory
This provides a more realistic picture of the true economic performance of a wear solution.
Optimize Crusher Settings for Abrasive Material
Even correctly selected wear parts can wear prematurely if the crusher is operated incorrectly. Settings should be selected according to the desired product and the characteristics of the feed.
Avoid Excessively Tight Settings
Closed-side setting (CSS) affects product size, reduction ratio, capacity, power consumption, and wear. A tighter setting may produce a smaller product, but it can also increase crushing forces and place additional demands on the machine.
Operators should therefore avoid tightening the crusher to increase fines or achieve a smaller product unless the complete circuit has been designed for it.
Avoid Repeated Overloading
Running continuously at the edge of the crusher’s capacity can accelerate component deterioration and increase the probability of mechanical problems.
Monitor:
- Feed rate
- Power draw
- Crusher pressure
- Product size
- Recirculating load
Temperature and vibration where applicable
Stable operation is generally more valuable than short periods of maximum production followed by maintenance interruptions.
Monitor Wear Patterns Instead of Waiting for Failure
Routine inspection is essential, but simply looking at a liner and saying “it is worn” provides limited information. The wear pattern can tell operators much more about what is happening inside the crushing process.
For example:
- Wear pattern
- Possible cause
- One-sided wear
- Uneven feed distribution
- Rapid overall wear
- Highly abrasive feed or unsuitable wear material
Localized severe wear
- Segregation or concentrated loading
- Excessive lower-area wear
- Feed gradation or operating-condition issue
- Cracking or breakage
- Impact, overload, installation, or mechanical problem
The important point is that premature wear should trigger an investigation rather than simply another replacement.
Measure Wear Using Production Data
Instead of recording only operating hours, track wear against actual production.
Useful KPIs include:
- Tons processed per liner
- Wear rate per 1,000 tons
- Wear-part cost per ton
- Crusher availability
- Production rate
- Power consumption
For example, if a liner lasts 1,000 operating hours but processes only 50,000 tons, comparing it with another liner that lasts 800 hours while processing 55,000 tons could completely change the purchasing decision.
When Crusher Wear Is Actually a Circuit Problem
Sometimes replacing the wear parts will not solve the underlying problem. Excessive wear can be a symptom of an inefficient crushing circuit.
Look beyond the crusher when you see persistent problems with:
- Excessive recirculating load
- Poor screening efficiency
- Inadequate scalping
- Excessive reduction in one crushing stage
- Poor feed distribution
- Incorrect crusher sizing
A multi-stage crushing circuit can distribute size reduction across several machines rather than forcing one crusher to perform excessive reduction. Although additional equipment increases capital requirements, the resulting improvement in wear, capacity, product control, and energy efficiency may make the complete circuit more economical.
A Practical Strategy for Reducing Crusher Wear
For an abrasive-rock crushing plant, use a continuous optimization process:
- Characterize the rock – determine abrasiveness, hardness, feed size, and other relevant properties.
- Check feed preparation – control oversize, fines, moisture, and gradation.
- Select the correct crusher and chamber – match the equipment to the application.
- Choose appropriate wear parts – consider material, profile, service life, and cost per ton.
- Stabilize operation – control CSS, feed rate, power draw, and chamber loading.
- Inspect wear patterns – identify abnormal wear before component failure.
- Measure performance – compare tons processed, wear rate, downtime, and cost.
- Optimize continuously – change one major variable at a time and measure the result.
This approach turns crusher wear management from reactive maintenance into a measurable production strategy.
Conclusion
When processing abrasive rock, eliminating crusher wear is impossible. The real objective is to control the wear while maximizing productive tons from every wear component.
The best results come from looking beyond the liner itself. Rock properties, feed preparation, crusher selection, chamber geometry, operating settings, feed distribution, maintenance, and plant configuration all interact to determine wear performance.
