Silica sand is one of the most important industrial minerals in the world, serving as a key raw material for glass manufacturing, solar panels, foundry casting, ceramics, and advanced technology industries. However, natural silica sand rarely meets the strict quality requirements of these applications directly after mining. Impurities such as iron minerals, clay, feldspar, mica, and heavy minerals can significantly reduce its commercial value.
This is why a well-designed silica sand processing plant is essential. Through a combination of crushing, washing, scrubbing, classification, magnetic separation, and flotation, raw silica sand can be upgraded into high-quality industrial material with improved purity and consistent performance.
A successful silica sand processing project is not simply about increasing production capacity. The real challenge is achieving the required product specification at the lowest possible operating cost while maintaining environmental sustainability.
Understanding Silica Sand Quality Requirements Before Processing
What Makes Silica Sand High Purity?
The value of silica sand is mainly determined by its chemical composition, particle size distribution, and impurity content. Different industries require different silica sand grades.
For example:
- Construction applications require clean and properly sized sand.
- Glass production requires high SiO₂ content and low iron content.
- Solar glass manufacturing requires extremely low Fe₂O₃ levels.
- Semiconductor applications require ultra-high purity silica materials.
The most important quality indicators include:
- SiO₂ content: Determines silica purity.
- Fe₂O₃ content: A critical factor in glass and solar applications because iron can cause unwanted coloration.
- Al₂O₃ content: Indicates the presence of clay or feldspar impurities.
- Particle size distribution: Affects processing performance and application suitability.
Therefore, before designing a silica sand processing plant, mineral testing should always be conducted to understand the characteristics of the raw ore.
Complete Silica Sand Processing Flow: From Raw Material to Final Product
A modern silica sand beneficiation process usually includes multiple stages. Each stage has a specific purpose: to remove impurities and improve product quality.
The typical processing flow includes:
Raw silica sand → Crushing → Screening → Scrubbing → Washing → Desliming → Magnetic Separation → Flotation → Dewatering → Drying → Final Product
The exact process configuration depends on:
- Raw sand quality
- Required final purity
- Production capacity
- Target application
Crushing and Screening: Preparing Raw Silica Sand
Reducing Particle Size for Efficient Processing
Some silica sand deposits contain oversized particles or compacted materials that require size reduction before further treatment.
The crushing stage helps:
- Reduce large particles into suitable sizes
- Improve mineral liberation
- Provide stable feed material for downstream equipment
Common equipment includes:

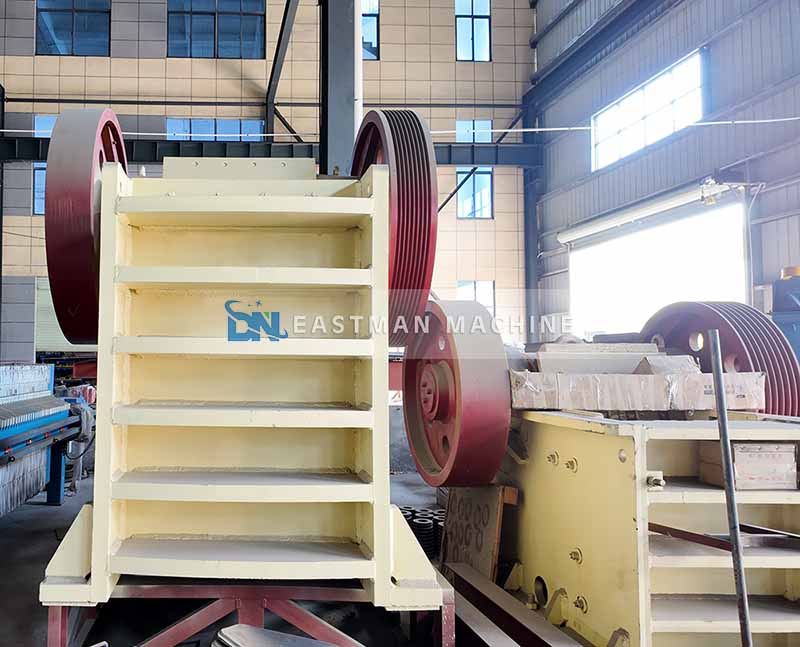

Jaw Crusher
A jaw crusher is often used for primary size reduction because of its:
- Simple structure
- High reliability
- Large feeding capacity
- Easy maintenance
Vibrating Screen
After crushing, screening equipment separates materials according to particle size.
Benefits include:
- Removing oversized particles
- Improving processing efficiency
- Controlling final product size
Proper size control is important because excessive fine particles may increase the difficulty for later separation processes.
Scrubbing and Washing: Removing Surface Contaminants
Why Attrition Scrubbing Is Important
Many silica sand deposits contain iron oxide coatings, clay films, and other surface contaminants attached to quartz particles. These impurities cannot always be removed through simple washing.
An attrition scrubber improves silica quality by creating strong friction between sand particles.
During scrubbing:
- Sand particles collide with each other.
- Clay and iron coatings are separated from quartz surfaces.
- Mineral liberation is improved.
Key factors affecting scrubbing performance include:
- Scrubbing time
- Pulp density
- Agitation intensity
- Particle size
For deposits with high clay content, scrubbing is often one of the most important steps in improving silica recovery.
Sand Washing Equipment
After scrubbing, washing equipment removes loosened impurities.
Common sand washing equipment includes:
Spiral sand washers
Bucket wheel sand washers
The washing stage helps remove:
- Clay particles
- Dust
- Fine impurities
A well-designed washing system can significantly improve silica sand quality while reducing the load on later beneficiation equipment.
Desliming: Removing Fine Clay and Slime
Improving Separation Efficiency Through Classification
Fine clay and slime particles can negatively affect the performance of magnetic separation and flotation. Therefore, desliming is an essential step in many silica sand processing plants.
- A hydrocyclone is commonly used for this purpose.
- Hydrocyclone Working Principle
- A hydrocyclone uses centrifugal force to separate fine particles from coarse sand.
Advantages include:
- Compact structure
- High classification efficiency
- Low maintenance requirements
- Continuous operation
Hydrocyclones are widely applied for:
- Removing particles below required sizes
- Improving slurry quality
- Increasing downstream separation efficiency
Magnetic Separation: Removing Iron-Bearing Minerals
Reducing Iron Content for Higher-Value Applications
Iron contamination is one of the biggest challenges in silica sand processing, especially for glass and solar industries.
Iron-bearing minerals may include:
- Hematite
- Magnetite
- Ilmenite
- Iron-stained quartz particles
Magnetic separation is commonly used to remove these impurities.

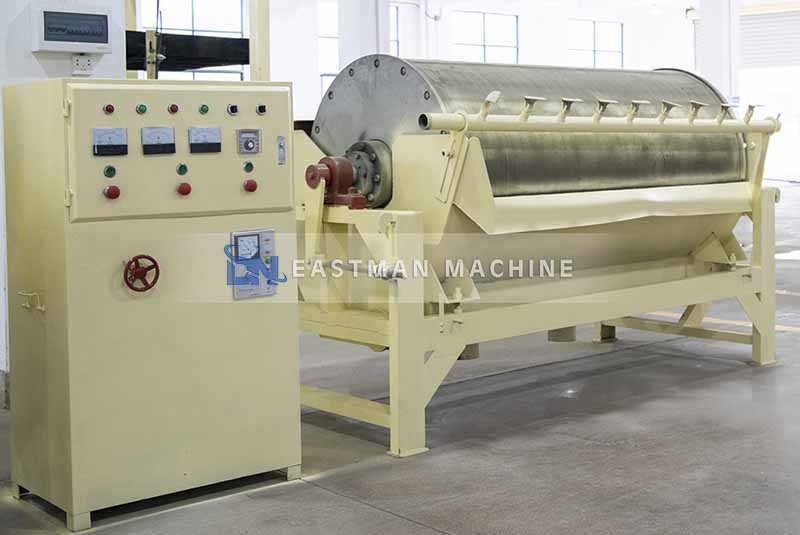

Wet High Intensity Magnetic Separator
A wet high intensity magnetic separator can effectively separate weakly magnetic minerals from silica sand.
Advantages:
- Improves silica purity
- Reduces iron oxide content
- Suitable for fine particle processing
The efficiency of magnetic separation depends on:
- Magnetic field strength
- Feed particle size
- Mineral characteristics
- Slurry concentration
For high-quality silica sand production, multiple magnetic separation stages may be required.
Flotation Purification: Producing Higher Grade Silica Sand
Removing Feldspar, Mica, and Remaining Impurities
When producing high-purity silica sand, flotation is often used after magnetic separation.
Flotation separates minerals based on differences in surface properties. When specific reagents are added, unwanted minerals attach to air bubbles and are removed from the silica concentrate.
Flotation can remove:
- Feldspar
- Mica
- Remaining iron minerals
Important flotation parameters include:
- pH value
- Collector dosage
- Frother dosage
- Air volume
- Residence time
For applications such as solar glass and advanced industrial materials, flotation can significantly improve product quality.
Complete Silica Sand Processing Plant Equipment List
A complete silica sand processing plant may include:
Processing Stage | Main Equipment | Purpose |
Crushing | Jaw crusher | Reduce raw material size |
Screening | Control particle size | |
Scrubbing | Attrition scrubber | Remove surface impurities |
Washing | Sand washer | Clean silica particles |
Classification | Hydrocyclone | Remove fine slime |
Magnetic separation | Magnetic separator | Remove iron minerals |
Flotation | Flotation machine | Remove feldspar and mica |
Dewatering | Dewatering screen | Reduce moisture |
Drying | Rotary dryer | Produce dry silica sand |
The equipment combination should always be selected according to raw material characteristics and final product requirements.
How to Design an Efficient Silica Sand Processing Plant?
Step 1: Analyze Raw Material Properties
Before investing in equipment, laboratory testing should be completed.
Important tests include:
- Chemical composition analysis
- Mineralogical analysis
- Particle size testing
- Magnetic separation testing
- Flotation testing
These results determine the most suitable processing route.
Step 2: Match Processing Technology With Final Application
Different products require different processing levels.
Construction-grade silica sand
Usually requires:
- Washing
- Screening
- Classification
- Glass-grade silica sand
Usually requires:
- Washing
- Scrubbing
- Magnetic separation
- High-purity silica sand
May require:
- Advanced magnetic separation
- Flotation
- Additional purification methods
Selecting excessive equipment increases investment costs, while insufficient processing reduces product value.
Common Challenges in Silica Sand Processing and Solutions
High Iron Content
Problem:
Silica sand cannot meet industrial requirements.
Solutions:
- Improve magnetic separation efficiency
- Add additional purification stages
- Optimize particle liberation
- Excessive Clay Content
Problem:
Poor separation performance.
Solutions:
- Increase scrubbing intensity
- Improve desliming efficiency
- Optimize washing circuits
- High Water Consumption
Problem:
Higher operating costs and environmental pressure.
Solutions:
- Install water recycling systems
- Use efficient dewatering equipment
- Optimize slurry management
Future Trends in Silica Sand Processing
The silica sand industry is moving toward higher purity requirements and more sustainable production methods.
Future trends include:
- Increased demand from solar photovoltaic industries
- More advanced purification technologies
- Automated process monitoring
- Improved water recycling systems
- Energy-efficient equipment designs
Modern silica sand plants will focus not only on production volume but also on resource efficiency and environmental responsibility.
Conclusion
Silica sand processing is a complex operation that requires careful consideration of raw material characteristics, product requirements, and equipment selection.
From crushing and washing to magnetic separation and flotation, each stage plays an important role in transforming raw sand into valuable industrial material.
For companies planning a silica sand processing plant, the most important recommendations are:
- Conduct detailed mineral testing before plant design
- Select equipment based on final product requirements
- Optimize the beneficiation process for maximum recovery
- Consider water recycling and sustainable operation
A properly designed silica sand processing plant can significantly increase resource value and provide high-quality materials for industries with growing global demand.
