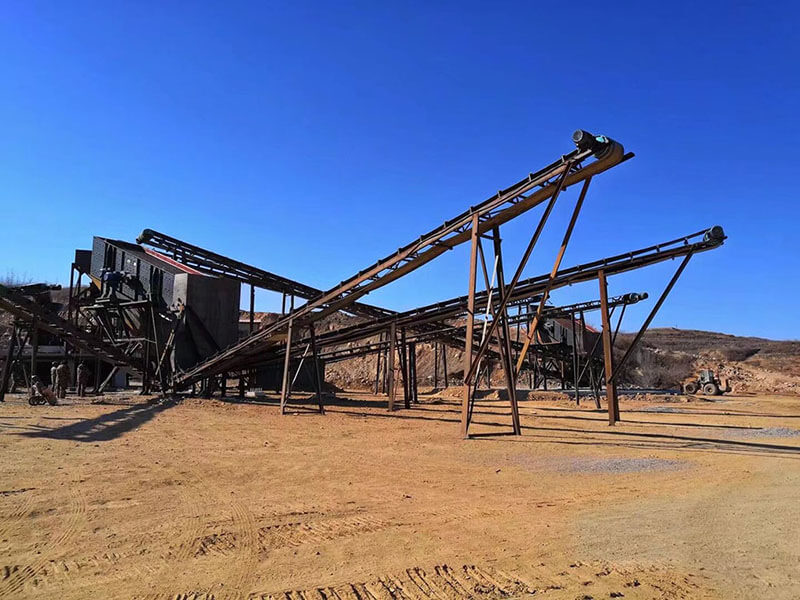

How Does Shale Sand Production Line Process?
As the construction industry rapidly evolves, the demand for sand and gravel materials rises. Shale, a new type of raw material for sand production, has gradually shown its advantages. Producing sand from shale not only effectively utilizes resources but also reduces production costs. This article will provide a detailed overview of the shale sand production line process, the equipment involved, and relevant considerations.
1. Characteristics of Shale
Shale is a layered sedimentary rock primarily composed of clay and a small amount of other minerals. The soft physical properties make it highly plastic and easy to process. The main components of shale include quartz, feldspar, mica, and carbonate minerals, endowing it with unique sand production capabilities. Although shale’s strength and abrasion resistance may not match that of certain hard rocks, it offers significant economic and environmental advantages during production.
2. Necessity of Shale Sand Production
- Resource Reutilization: Shale is a relatively abundant mineral resource widely used in construction sand. It reduces dependence on natural sand and gravel resources.
- Environmental Benefits: Utilizing shale for sand production can alleviate the impact of natural sand extraction. Minimizing environmental damage and aligning with sustainable development principles.
- Cost Efficiency: Shale is generally easier to obtain, and its transportation costs are relatively low, reducing overall production costs.
3. Shale Sand Production Line Process
The shale sand production line process generally includes several key stages: raw material preparation, crushing, screening, sand production, washing, drying (optional), storage, and transportation. Below is a detailed description of each stage:
Raw Material Preparation
Initially, collect and transport shale. Typically, shale mines are located in accessible areas to facilitate subsequent transportation and processing. During the raw material preparation stage, it is essential to ensure that the quality and particle size of the shale meets the requirements for further processing.
Crushing
Crushing is the first step in the sand production process. The purpose is to crush large shale into smaller particles suitable for sand production.
- Equipment Selection: Common crushing equipment includes jaw crushers, impact crushers, and hammer crushers.
Working Principle:
- Jaw Crusher: Breaks shale into smaller pieces through the relative motion of two jaw plates.
- Impact Crusher: Utilizes a high-speed rotating rotor and impact plates to crush the shale.
- Hammer Crusher: Breaks shale using high-speed rotating hammers.
Screening
After the initial crushing, the shale needs screening to remove unqualified particles and impurities.
- Equipment Selection: Vibrating screens are suitable for screening sand gravels.
- Working Principle: Vibrating screens separate materials of different sizes through vibration, ensuring the qualified particles enter the following processing stage.
Sand Production
The core stage of the sand production process involves further processing qualified shale particles into sand.
- Equipment Selection: Sand-making machines (such as impact crushers or vertical shaft impactors) are the primary equipment used for this purpose.
- Working Principle: Sand-making machines accelerate materials to high speeds by a high-speed rotating impeller. The materials collide with the lining plate, achieving the crushing and sand-making process. Different types of sand-making machines are adjustable to meet the desired sand particle shape and size.
Washing
Sand products typically contain an amount of dirt and impurities; therefore, washing is required to enhance the quality of the sand.
- Equipment Selection: Sand washing machines include wheel-type and spiral sand washers.
- Working Principle: Sand washing machines use water flow to wash away dirt and impurities from the surface of the sand particles, improving the purity and quality of the sand.
Drying (Optional)
It will require a dryer to reduce moisture levels to meet customer specifications if the moisture content is high.
- Equipment Selection: Dryers.
- Working Principle: Dryers utilize hot air to evaporate moisture from the sand particles to lower the moisture content.
Storage and Transportation
Finally, the processed finished sand needs to be stored in designated warehouses and prepared for transportation to markets or construction sites. During storage, it is essential to prevent moisture and contamination to maintain the quality of the sand.
4. Equipment Selection and Configuration
In the shale sand production process, the selection and configuration of equipment are crucial, impacting the efficiency of the entire production line and the quality of the finished sand.
- Crushing Equipment: Choose suitable crushing equipment based on the hardness and particle size of the shale. Jaw crushers are suitable for primary crushing, while impact crushers and hammer crushers are ideal for secondary and fine crushing.
- Screening Equipment: The selection of vibrating screens should consider production capacity and screening precision to ensure the particles enter the sand production stage.
- Sand Production Equipment: The choice of sand-making machines should consider the requirements for finished sand, such as particle shape and size distribution.
- Washing Equipment: The selection of sand washing machines should consider the desired cleanliness and production capacity to ensure the quality of the final product.
- Auxiliary Equipment: Belt conveyors and elevators ensure smooth connections between various stages and enhance production efficiency.
5. Considerations
During the shale sand production process, pay attention to the following points:
- Raw Material Characteristics: A thorough understanding of the mineral composition and physical properties is essential for selecting appropriate equipment and processes.
- Environmental Measures: Effective dust and noise control measures should be implemented during production, adhering to relevant environmental regulations to minimize environmental impact.
- Quality Control: Strict quality control should be enforced at every stage to ensure that the final product meets the required standards.
- Equipment Maintenance: Regular maintenance and servicing of equipment to enhance equipment lifespan and production efficiency.
Conclusion
Shale sand production line represents a resource utilization technology with vast potential. The rational configuration of processes and equipment is crucial for improving production efficiency and the quality of sand and gravel products. Through scientific production management and equipment selection, shale sand production can become an economical and environmentally friendly way of sand and gravel production. With the ongoing development of technology and evolving market demands, shale sand production will encounter more growth opportunities, contributing to the sustainable development of the construction industry. Shale sand production is a rational utilization of resources and an important initiative to promote a green transformation in the industry.
