For decades, river sand has been the undisputed king of fine aggregates in the construction industry. Its smooth texture and reliable grading made it the go-to material for concrete, mortar, and paving. However, the landscape of the construction materials sector is changing rapidly. Driven by environmental regulations, the depletion of natural riverbeds, and a global push toward sustainable mining practices, the industry is actively seeking viable alternatives. Enter granite sand, also known as granite manufactured sand (M-sand).
This article provides an in-depth analysis of whether granite sand can effectively replace river sand, explores production efficiency, and outlines the essential equipment for a successful granite sand production line.

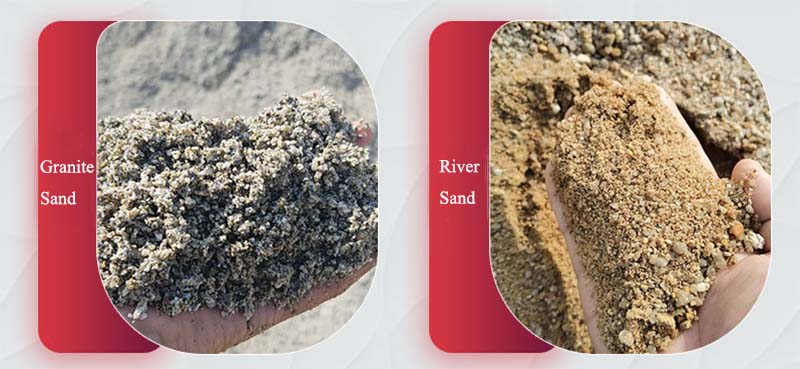

Can Granite Sand Replace River Sand?
The short answer is yes. Granite sand has proven to be a highly effective substitute for river sand in a wide range of construction applications. It is already widely utilized in building, municipal engineering, and transportation infrastructure projects across the globe.
One of the most significant validations of granite sand is its ability to produce concrete. Extensive testing and real-world applications have shown that it can successfully replace river sand. This covers the vast majority of structural applications in modern construction.
Why Granite Works as a Replacement
The reason granite sand performs so well stems from the geological properties of the source rock itself. Granite is an intrusive igneous rock, meaning it cooled slowly beneath the Earth’s surface. This formation process gives it several distinct advantages:
- High Strength: Granite is exceptionally hard and durable, ensuring that the resulting concrete maintains its structural integrity under heavy loads.
- Weather Resistance: It possesses excellent resistance to weathering, corrosion, and abrasion. This makes it suitable for outdoor applications and harsh environmental conditions where longevity is critical.
- Durability: Structures built with granite-based aggregates tend to have a longer service life due to the material’s inherent resistance to chemical and physical degradation.
While it offers these advantages, transitioning from river sand to granite sand is not a “plug-and-play” process. It requires careful adjustments to the concrete mix design and production methodology. Understanding these nuances is the key to success.
Critical Considerations When Using Granite Sand
To maximize the benefits of granite sand and ensure the longevity of your structures, you must pay close attention to the following technical details.
Mix Proportion Adjustments
River sand particles are typically smooth due to the erosion process of water. Granite sand, however, is crushed mechanically, resulting in angular particles with a higher surface area and a slightly higher water absorption rate.
The Solution: When designing the concrete mix, it is recommended to calculate the water requirement based on the saturated surface dry (SSD) condition of the granite sand.
Stone Powder Control
One of the biggest challenges with granite sand (and all manufactured sand) is the generation of stone powder (dust particles). While river sand typically contains clay and silt, granite sand contains rock fines.
The Risk: Excessive stone powder can increase the shrinkage rate of concrete during curing, potentially leading to cracks. It also coats the larger aggregates, weakening the bond between the cement paste and the aggregates.
The Standard: Strict control of stone powder content is essential.
Class I Sand: ≤ 5.0%
Class II Sand: ≤ 7.0%
The Solution: This requires robust washing or screening processes to eliminate excess fines and ensure the product meets national standards.
Gradation Optimization
River sand often boasts a well-rounded, continuous particle distribution (gradation). Conversely, single-manufactured granite sand often exhibits a “bimodal” distribution—meaning it has an excess of coarse particles and an excess of fine powder, with a deficit in the middle-range particles.
- The Solution: To optimize the particle gradation and minimize voids in the concrete, you have two primary options:
- Blending: Combine granite sand with a portion of natural river sand to create a “mixed sand” that mimics the ideal distribution curve.
- Advanced Processing: Adjust crushing and screening to better control particle shape and size, reducing the “gap” in the gradation curve.
Granite Sand Production Capacity: How Much Sand Do You Get?
For quarry owners and investors, the financial viability of a granite sand plant hinges on the yield, commonly referred to as the “sand output rate.”
Generally, the sand production rate for granite ranges between 60% and 85%. This means that for every 1 ton of raw granite fed into the plant, you can expect to produce between 0.6 and 0.85 tons of qualified manufactured sand. The remaining percentage typically consists of larger stones (which can be recirculated) or fine powder (sludge).
However, this rate is not fixed and varies significantly based on three main factors:
Equipment Selection and Process Flow
The “multi-crush, less-grind” philosophy is the gold standard in modern sand making.
High-Yield Configuration: a combination of cone crushers and impact crushers (VSI sand makers), coupled with a fine material recovery system, can push the output rate to 80% – 85%.
Raw Material Characteristics
The specific qualities of the incoming raw granite directly affect the final output.
- Hardness and Texture: Granite ranks 7 or higher on the Mohs scale. While this makes it a durable aggregate, it also makes it hard to crush.
- Contaminants: If the raw material contains high levels of clay or soil, this “waste” will inevitably reduce the effective sand output.
- Initial Size: Very large feed blocks (run-of-mine) require more energy and pass through the crusher, increasing wear, which lowers the yield.
Definition of “Finished Product”
What you define as “finished sand” matters. The standard definition of sand is particles ranging from 0.075mm to 4.75mm.
- Dry Process: The stone powder content can be controlled within 10%, but this powder is often collected for other uses.
- Wet Process: While water washing provides cleaner sand, it often washes away fine sand particles (below 0.15mm). This can result in a significant weight loss, sometimes reducing the overall physical yield compared to the dry process.

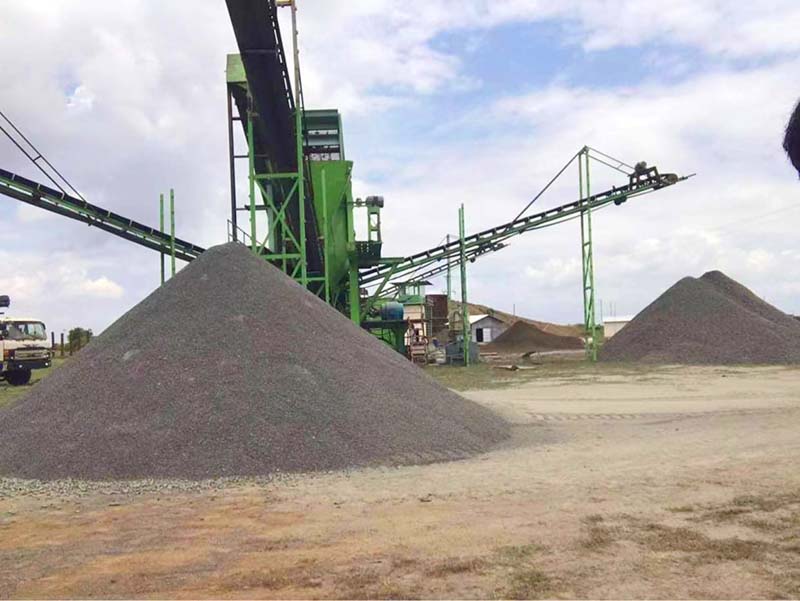

The Granite Sand Production Line: Essential Equipment
Setting up a granite sand production line requires robust, heavy-duty equipment capable of handling the extremely hard rock. Here is a breakdown of the four essential stages of machinery required for the job.
Primary Crushing Stage
The process begins with feeding large stones (up to 600mm or more) into the line.
The Equipment: A Jaw Crusher is the industry standard for primary crushing. It is designed to handle high-strength materials.
Secondary Crushing Stage
To reduce the rock to gravel size, a second crushing phase is necessary.
The Equipment: A Cone Crusher is highly recommended for granite.
Why a Cone Crusher? Unlike impact crushers used for softer stone, cone crushers use compression to break the rock, offering better wear life and lower maintenance costs when processing granite.
Tertiary Crushing / Sand Making Stage
This is the core of the production line where gravel is turned into sand.
- The Equipment: A Vertical Shaft Impact (VSI) Crusher, commonly known as a sand maker, is used here.
- How it works: It utilizes a high-speed rotor to throw the material against a crushing chamber. This “rock-on-rock” or “rock-on-iron” impact breaks the material along its natural fissures. The VSI is crucial because it produces sand with a good particle shape (cubical) and creates the necessary surface texture for concrete bonding.
Screening and Washing Stage
The final step ensures the sand is free of oversize materials and excessive fines reach standard specifications.
- The Equipment: A combination of Vibrating Screens (for size classification) and Sand Washing Machines (for removing stone powder and clay).
- Optional: A Fine Material Recovery Unit can be added to the wet process to reclaim the fine sand particles that would otherwise be lost to the wash water, boosting the overall sand output rate.
Conclusion
The construction industry is moving irrevocably towards manufactured sand, and granite sand stands out as a premier alternative to traditional river sand. While it requires a higher level of technical oversight—specifically regarding mix design, stone powder control, and gradation—its superior strength and durability offer significant advantages for modern engineering projects.
With a potential sand output rate of up to 85% and a well-designed “Jaw Crusher + Cone Crusher + VSI” production line, granite is not just a replacement for river sand; it is often an improvement.
