100TPH River Stone Crushing Plant In Ecuador

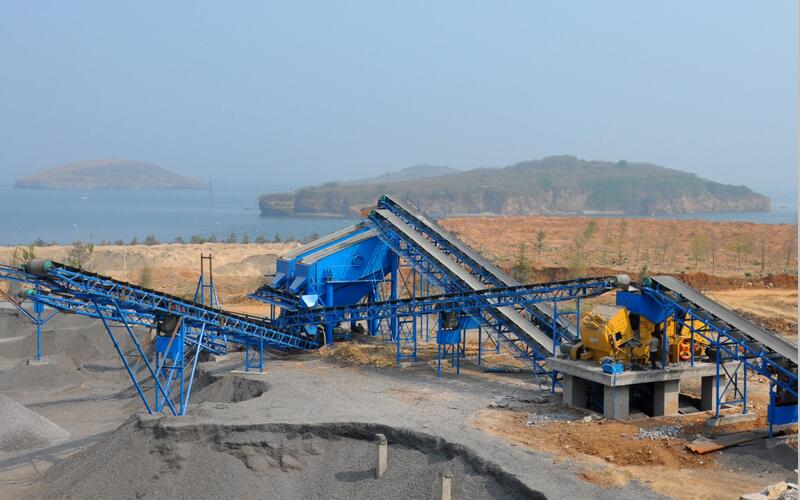

river stone crusher plant
engineer support for river stone plant

Project Profile

Raw Material: River Stone
Capacity: 100TPH
Output size: 0-9.5mm, 9.5-12.7mm,12.7-19mm,19-25.4mm
Max Feed/Input Size: <425mm
Location: Ecuador

Plant Process

River stones that <425mm fed into vibrating grizzly feeder DN380*95 from hopper. Then evenly fed into jaw crusher PE-500*750 for primary crushed to 50-100mm materials. Symons cone crusher PSGB-0917 was used for river stone secondary crushed. The crushed materials were screened five types size via four-layer Vibrating Screen 4YD1860. 0-9.5mm, .5-12.7mm, 2.7-19mm, 9-25.4mm size are customer needed aggregate. Materials of biger than 25.4mm were transported into Symons cone crusher PSGB-0917 for crushed again by belt conveyor. ▼Download Flowchart PDF

The Crusher Plant Equipment List

1. Primary Crusher: Jaw Crusher PE-500*750
2. Secondary Crusher: Symons Cone Crusher PSGB-0917
3. Vibrating Feeder Equipment: Vibrating Grizzly Feeder DN380*95
4. Screening Equipment: Vibrating Screen 4YD1860
5. Belt Conveyor: B500*15,B650*20,B500*12
6. Electric Cabinet

Our Advantages

➤Professional Engineers Team
Tell us raw material of your aggregate plant, input size, output size, and capacity. Our professional crusher plant engineers will quickly design a completely crushing process flowchart of simple, efficient, and low cost for you. Also, our engineers can design the flowchart according to your needs. Answer any aggregate questions for you.

➤Excellent Crusher Manufacturers
Our company was founded in 1985. In the aggregate crushing industries, we have 35+ years of machinery production of experience. All the equipment of stationary crusher plant, mobile(portable) crusher plant are choose the best materials, and meticulously casting every part. High Performance & Ease of Operation, many crushers equipment in stock.

➤Good Service
We have a office in Tanzania.The customers of regions near Tanzania and Tanzania, we provide installation service for free. All of our equipment, 1 Year Warranty.

river stone crusher plant
80TPH Granite Crusher Plant
60tph limestone crusher plant dn
60TPH Limestone Crusher Plant
crushed black stone
250TPH Black Stone Crushing Plant

Related Product

jaw crusher
Jaw Crusher
impact crushers
Impact Crusher
Cone crusher
Cone Crusher
hammer crusher

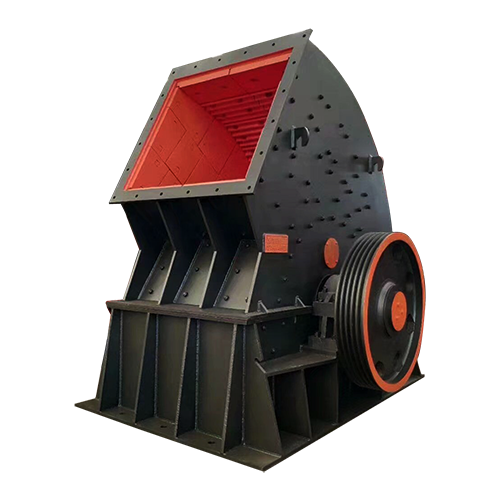

Hammer Crusher
