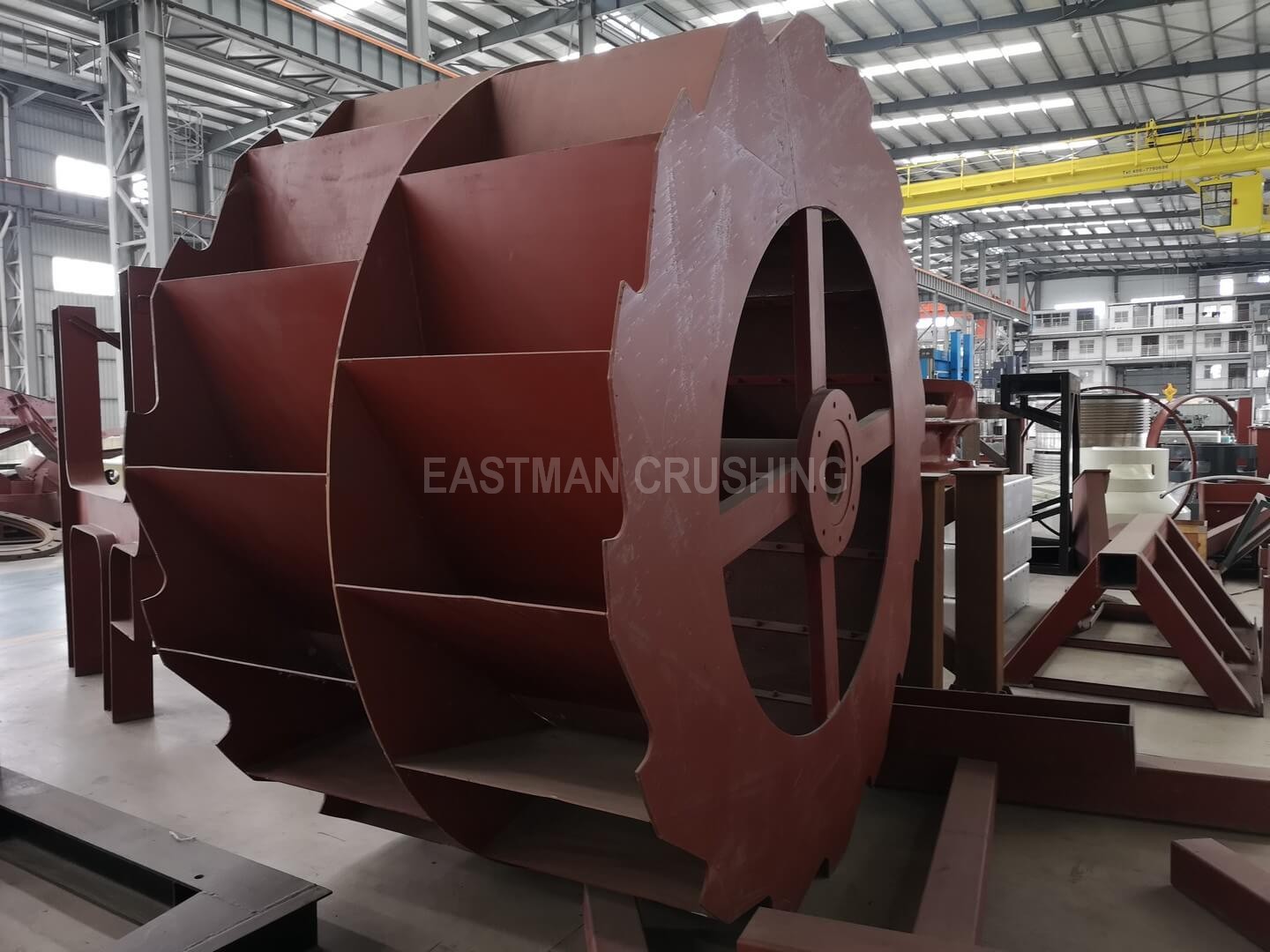

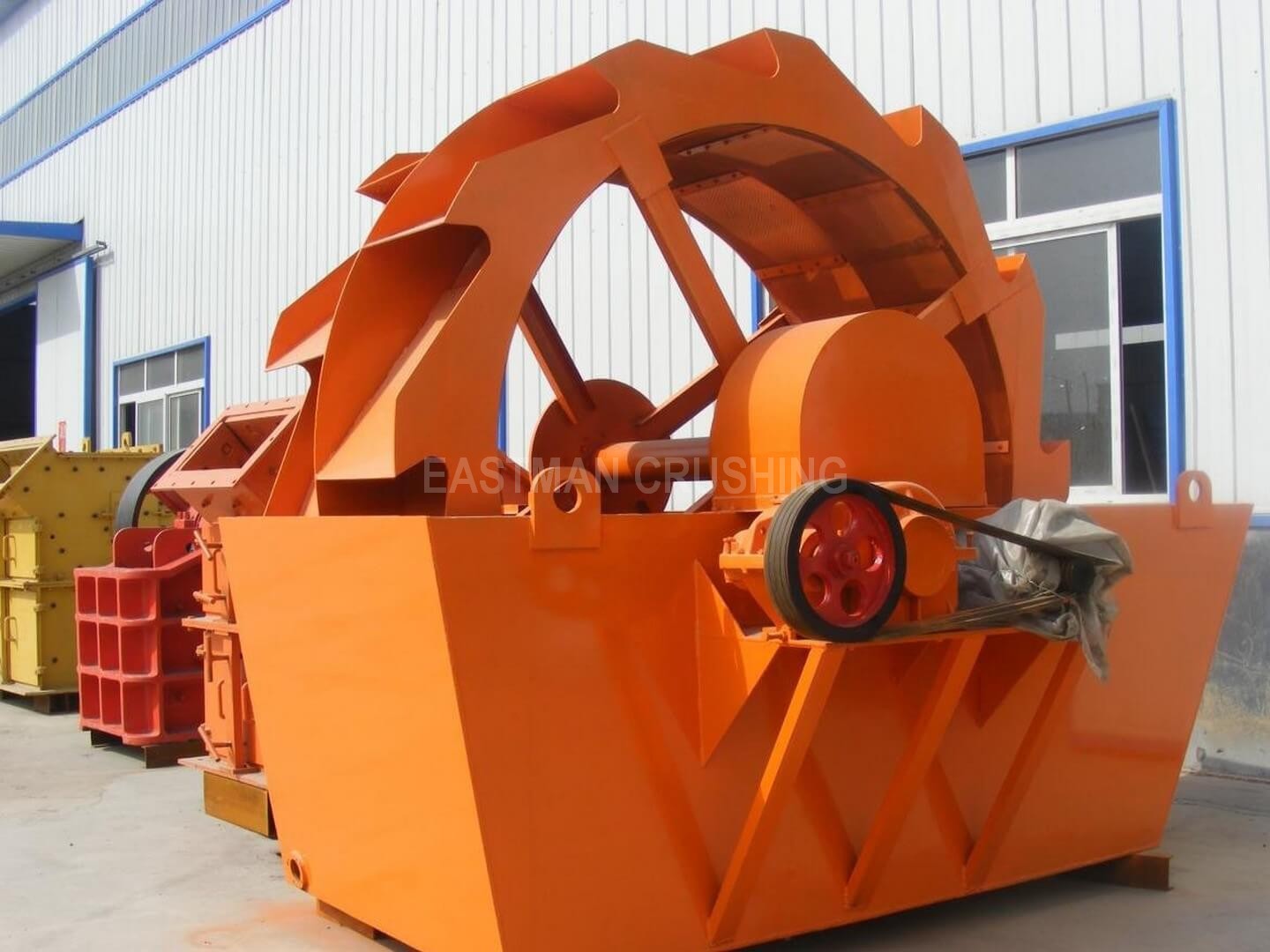

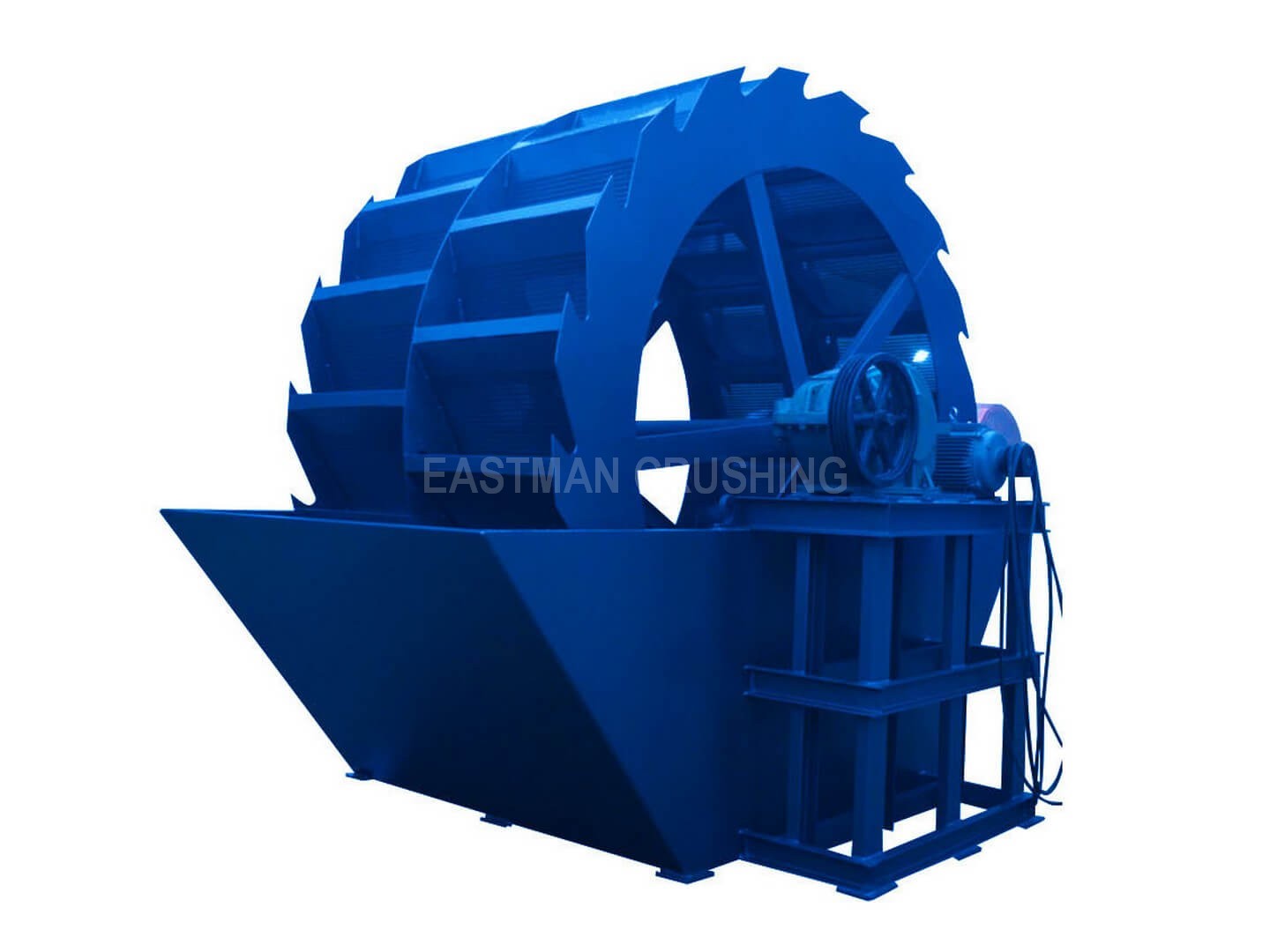

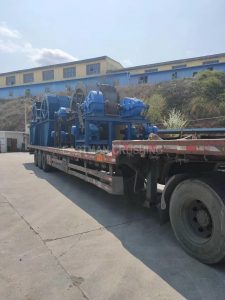

Wheel Sand Washing machine
XS Series wheel sand washer has adopted advanced technology of high efficient sand washing according to real situations of sand markets to meet the demand for cleaner sands.
Building with a more simple structure so it is very convient to maintain, also more easy to repair.
Capacity
15-200t/h
Max Feeding Size
10mm
Working Principle
Our XS series washing machine featured with high washing quality, dehydration rate, large capacity and low energy consumption.
When sand washing machine working, the impellors run slowly with the decelerator motor. The sand and stone flow into washing tank from feeding launder grinds with each other and rolls with the impellor slowly, so that the impurities covered in sand is washing out.
Meanwhile, the washing water will take out some wastes and impurities from the washing tank. The washed sand and stone is lifted up by impellor. When it rolls up slowly, the water begins to drop through the meshes and fall back in the washing tank, the water can be fully used.
Finally, the clean sand and stone go out of the washing tank and the washing process is over.
Model Specifications
Model | Diameter of The Wheel Bucket (mm) | Speed of Rotation (r/min) | Maximum Feeding Size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Overall Dimensions (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|
XS2210 | 2200 | 2.5 | 10 | 15-30 | 4 | 3180 955*2350 | 2260 |
XS2610 | 2600 | 2.5 | 10 | 20-50 | 5.5 | 3515*2070*2672 | 2500 |
XS2810 | 2800 | 1.2 | 10 | 50-80 | 11 | 3964*3014*2895 | 3200 |
XS2815 | 2800 | 1.17 | 10 | 60-100 | 11 | 3964*2137* 2895 | 3580 |
XS3016 | 3000 | 1.2 | 10 | 70-110 | 11 | 14169*3456* 30551 | 3850 |
XS3210 | 3200 | 1 | 10 | 80-120 | 15 | 4340*2760* 3349 | 3950 |
XS3215 | 3200 | 1.17 | 10 | 95-130 | 15 | 4346*2198* 3345 | 4185 |
XS3610 | 3600 | 1 | 10 | 110-200 | 15 | 4580*3218* 3600 | 4600 |
features highlight
- Higher sand quality with a lower moisture content.
- Recycled fine size 0.16-3mm sand, lower mud content.
- Compact structure, multiple functions, easy install, convenient maintenance, small occupation area.
- High capacity, after this sand washer 95% sand can be washed.
- Solve sedimentation tank cleaning problem, higher economical profit.
- The sand washing machines whose transmission gear is separated from water and sand in order to reduce the failure .



Quick quotation, free crushing flow design, on-site service! Respond to you within 24 hours.
realted equipment

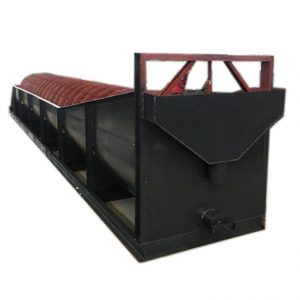

Spiral Sand Washing Machine
Another type of sand washing machine also widely used

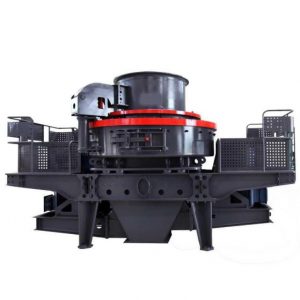

VSI Sand Making Machine
The most widely used sand making equipment

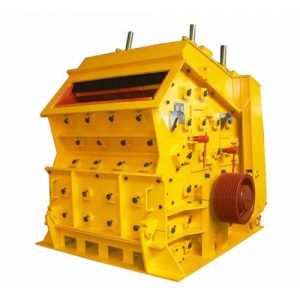

Hydraulic Impact Crusher
secondary, tertiary crusher

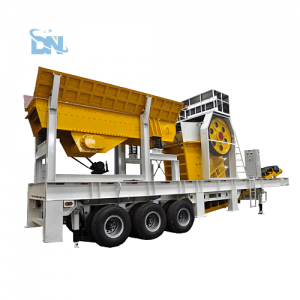

Mobile Crusher
